ST CPL 1/8 HB PM BR N
Mfr # 20KFTS03MPN
Zoro # G316423989
product price:
$
35.25
/ea
Key Features
Material
Brass
Connection Type
Hose Barb
Hose Fitting Size
1/8 in
Finish/Coating
Nickel-Plated
Max. Flow Rate
1.5 lpm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 20KFTS03MPN
- Zoro #
- G316423989
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Hose Fitting Size
- 1/8 in
- Body Size - Quick Connect Air Couplings
- 1/8 in
Details
- Item
- Quick Connect Air Coupling
- Material
- Brass
- Connection Type
- Hose Barb
- Finish/Coating
- Nickel-Plated
- Max. Flow Rate
- 1.5 lpm
- Seal Material
- HNBR
- Includes Valve
- No
- Temp. Range
- -4 Degrees to 212 Degrees F
- Standards
- ATEX, RoHS
- For Hose I.D.
- 1/8 in
- For Use With
- Gas, Liquids, Pneumatic
- Barbed
- Yes
- Interchange Type
- European Profile
- Coupling Locking Type
- Push-to-Connect
Description

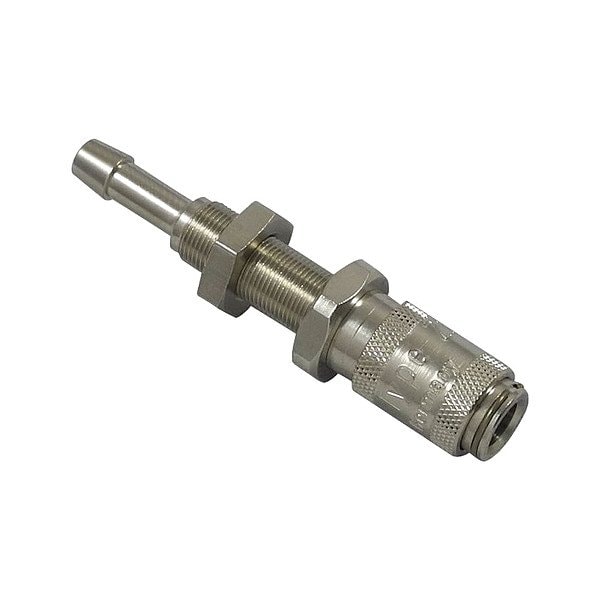

The PARKER - 20KFTS03MPN is a quick coupler designed for fast, tool-free connection and disconnection of hose ends using mating male and female halves. Made primarily of brass with a nickel-plated finish, this coupler is compatible with gases and liquids in pneumatic applications, when used with appropriate fittings and seals. It features a hose barb connection type, rated for use with hoses having a 3 mm inner diameter. The coupler has a specified maximum flow rate of 1.5 liters per minute under testing/conditions provided by the manufacturer and is rated for operation within -4°F to 212°F.
Key Features:
- Body size: 2 45/64 mm quick-connect air coupling diameter
- Hose fitting size: 3 mm
- Barbed hose tail for connection to flexible tubing (hose retention depends on hose material, wall thickness, and installation)
- Seal material: NBR (nitrile) for fluid sealing
- Nickel-plated surface finish
- Complies with ATEX and RoHS requirements, where applicable to the installation and use conditions
