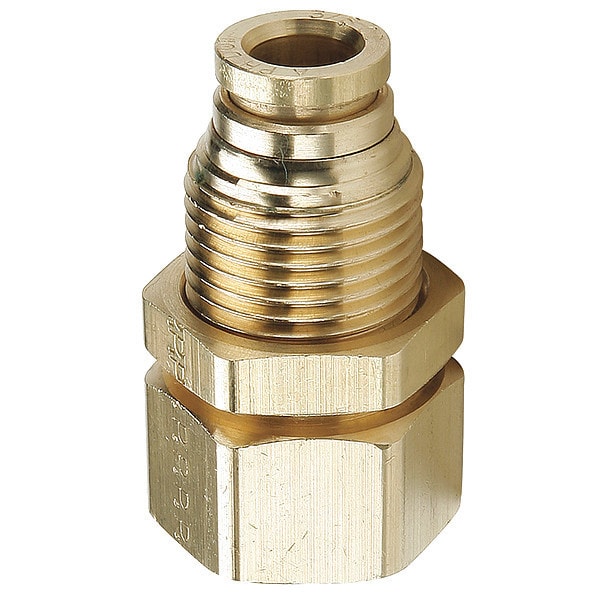

Strt, Brass, Push-Fit1/4in, FNPTF1/4in

  • Mfr # 66PTCBH-4-4
  • Zoro # G7952955
product price:
$
22.39
/ea

Key Features

Length
1 17/32 in
Material
Brass
Type
Female
Connector Type
Adapter
Color
Gold
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
66PTCBH-4-4
Zoro #
G7952955
UPC #
-
Country of Origin
United States
Item
Push-Fit Adapter Fitting
Material
Brass
Type
Female
Connector Type
Adapter
Color
Gold
Connection
Tube x FNPT
For Use With
SAE J844 Tubing
Pressure (PSI)
250
Standards
DOT FMVSS 571.106, SAE J2494, SAE J2494-3
Gasket Material
Buna N
Temp. Range
-40 Degrees to 200 Degrees F
Sub-Category
Connectors
Application
Air
Minimum Operating Temperature
-40 Degrees F
Fitting Material
Brass
Release Ring Material
Buna N
Fitting Side B Connection Type
FNPTF
Maximum Operating Pressure
250 psi
Specific Fitting Shape
Straight Bulkhead Adapter
Fitting Side A Connection Type
Push-to-Connect
Compatible Tube Material
Nylon, Stainless Steel
Fitting Shape
Straight
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Maximum Operating Temperature
200 Degrees F
System of Measurement
Imperial
Resistance Properties
Impact-Resistant
Operating Pressure - Maximum
250 psi
Fitting Side 1 Connection Type
Push-to-Connect
Operating Temperature - Minimum
-40 Degrees F
Material Grade
C36000
For Media Type
Air
Operating Temperature - Maximum
200 Degrees F
Fitting Side 2 Connection Type
FNPTF
Series
PTC Brass

Description

Push-Fit Adapter Fitting, Application Air, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type FNPTF, Fitting Side B Pipe Size 1/4 in, Fitting Side A Tube Outer Diameter 1/4 in, Fitting Material Brass, Fitting Thread Size 1/4 In., Material Grade C36000, Color Gold, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 1 17/32 in
