Shop PARKER

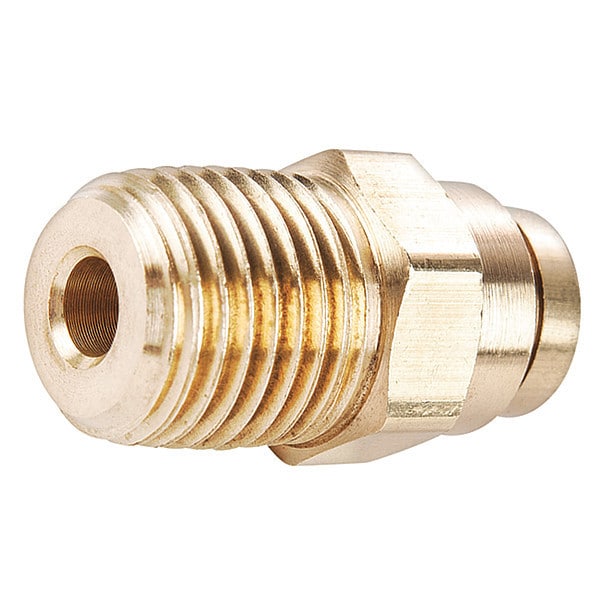

Strt, Brass, Push-Fit3/4in, MNPT3/4in

  • Mfr # 68PTC-12-12

  • Zoro # G7178580

product price:
$
23.75
/ea

Key Features

Outside Dia.
3/4 in
Material
Brass
Type
DOT Fitting
Connector Type
Adapter
Color
Gold
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
68PTC-12-12
Zoro #
G7178580
UPC #
-
Country of Origin
United States
Item
Push-Fit Adapter Fitting
Material
Brass
Type
DOT Fitting
Connector Type
Adapter
Color
Gold
Standards
DOT FMVSS 571.106, SAE J2494, SAE J2494-3
Pressure (PSI)
250
Temp. Range
-40 Degrees to 200 Degrees F
Sub-Category
Straight Connectors
Connection
Quick Connect
Gasket Material
Buna N
For Use With
Push Connect/Air Brake
Application
Air
Release Ring Material
Buna N
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Minimum Operating Temperature
-40 Degrees F
Fitting Side B Connection Type
MNPT
Maximum Operating Temperature
200 Degrees F
Compatible Tube Material
Nylon
Resistance Properties
Impact-Resistant
Fitting Shape
Straight
Fitting Material
Brass
Specific Fitting Shape
Straight Adapter
Release Type
Button
Maximum Operating Pressure
250 psi
System of Measurement
Imperial
Fitting Side A Connection Type
Push-to-Connect
Series
PTC Brass
Operating Temperature - Minimum
-40 Degrees F
Fitting Side 1 Connection Type
Push-to-Connect
Operating Temperature - Maximum
200 Degrees F
For Media Type
Air
Operating Pressure - Maximum
250 psi
Material Grade
C36000
Fitting Side 2 Connection Type
MNPT

Description

Push-Fit Adapter Fitting, Application Air, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MNPT, Fitting Side B Pipe Size 3/4 in, Fitting Side A Tube Outer Diameter 3/4 in, Fitting Material Brass, Fitting Thread Size 3/4 In., Material Grade C36000, Color Gold, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 1 7/8 in
