  11. Swivel Connect, Zinc Steel, Female ORFSxM, 1In
Shop All Hydraulic Hose Adapters & Plugs
Parker

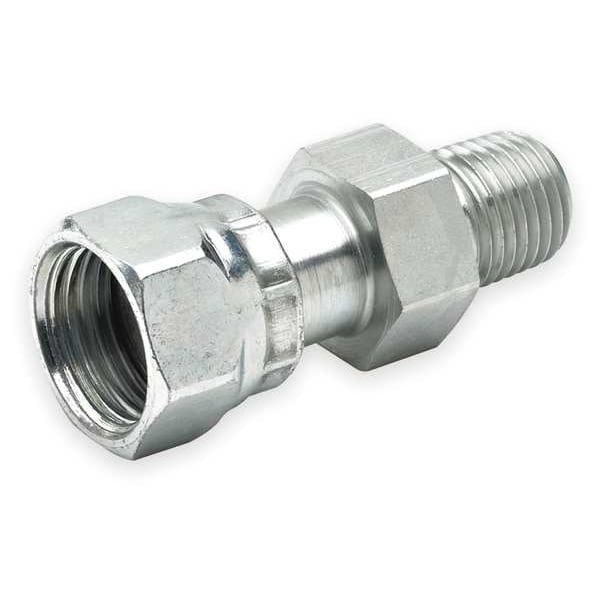

Swivel Connect, Zinc Steel, Female ORFSxM, 1In

product price: $22.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Fitting Shape Adapter
  • Fitting Material Steel
  • Fitting Connection Type Female ORFS x MNPT
  • Thread Size 1-11-1/2
  • Tube Fitting Material Zinc Plated Steel
See all product information

Product Information

Dimensions

Thread Size 1-11-1/2
Tube Size 1 in
Thread Size B 1-11 1/2
Fitting Side B Tube Outer Diameter 1 in
Fitting Side A Tube Outer Diameter 1 in
Hex Size 1 1/2 in
Overall Length 2 7/8 in
Length 2.87"

Details

Item Pipe Thread Swivel Connector
Fitting Shape Adapter
Fitting Material Steel
Fitting Connection Type Female ORFS x MNPT
Tube Fitting Material Zinc Plated Steel
Basic Pipe Fitting Material Metal
Specific Fitting Shape Straight Swivel Adapter
Specific Pipe Fitting Shape Connector
Pipe Fitting Connection Type Female ORFS x MNPT
Temp. Range -30 to 250 Degrees F
Standards SAE J1453
Basic Pipe Fitting Shape Connector
Max. Pressure 4500 psi
Fitting Side B Connection Type MNPTF
Fitting Side A Connection Type Swivel FNPT O-Ring
Maximum Operating Temperature 500 Degrees F
Compatible Tube Wall Thickness 0.188 in
Maximum Operating Pressure 4,500 psi
Finish/Coating Zinc Nickel-Plated
Minimum Operating Temperature 65 Degrees F
Resistance Properties Vibration-Resistant
Compatible Fitting Brands Seal-Lok
Series Seal-Lok
Compatible Tube Hardness 72 HRB
System of Measurement Imperial
Compatible Tube Material Alloy Steel, Copper, Monel Nickel Alloy, Stainless Steel, Steel
Application Air
Pressure (PSI) 4500
Sub-Category Connectors
Connection Female ORFS x MNPT

Description

Pipe Thread Swivel Connector, Application Air, Fitting Side A Connection Type Swivel FNPT O-Ring, Fitting Side B Connection Type MNPTF, Finish/Coating Zinc Nickel-Plated, Fitting Material Steel, Fitting Side A Tube Outer Diameter 1 in, Fitting Side B Tube Outer Diameter 1 in, Maximum Operating Pressure 4,500 psi, Maximum Operating Temperature 500 Degrees F, Overall Length 2 7/8 in, Specific Fitting Shape Straight Swivel Adapter, Compatible Fitting Brands Seal-Lok, Thread Size B 1-11 1/2
