Shop PARKER

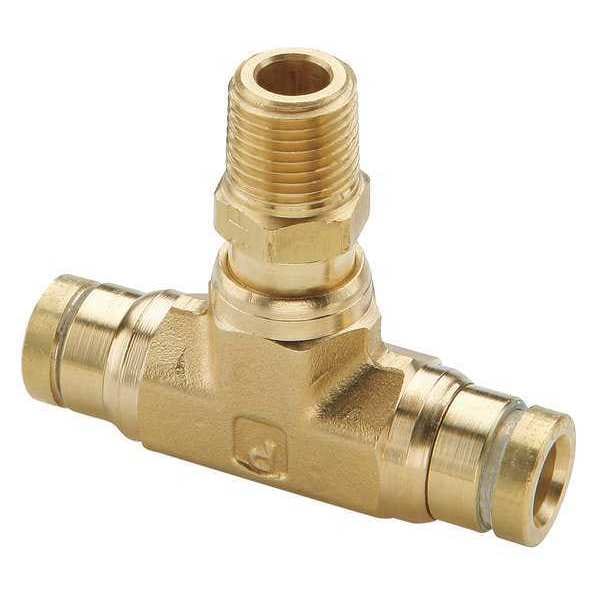

Tee, MNPT 1/8", Tube 3/8", Push-Fit 3/8"

  • Mfr # 172PTC-6-2

  • Zoro # G5576840

product price:
$
35.39
/ea

Key Features

Outside Dia.
3/8 in
Material
Brass
Type
DOT Fitting
Connector Type
Adapter
Color
Gold
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
172PTC-6-2
Zoro #
G5576840
UPC #
-
Country of Origin
United States
Item
Push-Fit Tee Fitting
Material
Brass
Type
DOT Fitting
Connector Type
Adapter
Color
Gold
Sub-Category
Tees
Connection
Tube x MNPT
For Use With
SAE J844 Tubing
Gasket Material
Buna N
Pressure (PSI)
250 psi
Temp. Range
-40 Degrees to 200 Degrees F
Standards
DOT FMVSS 571.106, SAE J2494, SAE J2494-3
Application
Air
System of Measurement
Imperial
Fitting Side B Connection Type
Push-to-Connect
Fitting Side C Connection Type
Push-to-Connect
Compatible Tube Material
Nylon, Stainless Steel
Fitting Material
Brass
Resistance Properties
Compact-Resistant, Impact-Resistant
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Minimum Operating Temperature
-40 Degrees F
Fitting Side A Connection Type
MNPT
Maximum Operating Pressure
250 psi
Release Type
Button
Specific Fitting Shape
Swivel Adapter Tee
Maximum Operating Temperature
200 Degrees F
Fitting Shape
Tee
Fitting Side 1 Connection Type
MNPT
Material Grade
C36000
Fitting Features
Swivel
Fitting Side 3 Connection Type
Push-to-Connect
Operating Temperature - Maximum
200 Degrees F
Operating Pressure - Maximum
250 psi
For Media Type
Compressed Air
Fitting Side 2 Connection Type
Tube
Operating Temperature - Minimum
-40 Degrees F

Description

Push-Fit Tee Fitting, Application Air, Color Gold, Fitting Side A Connection Type MNPT, Fitting Side B Connection Type Push-to-Connect, Fitting Side C Connection Type Push-to-Connect, Material Grade C36000, Fitting Side A Pipe Size 1/8 in, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Fitting Side B Tube Outer Diameter 3/8 in, Fitting Side C Tube Outer Diameter 3/8 in, Fitting Material Brass, Maximum Operating Pressure 250 psi
