  11. Themostatic Expansion Valve, 15 Tons

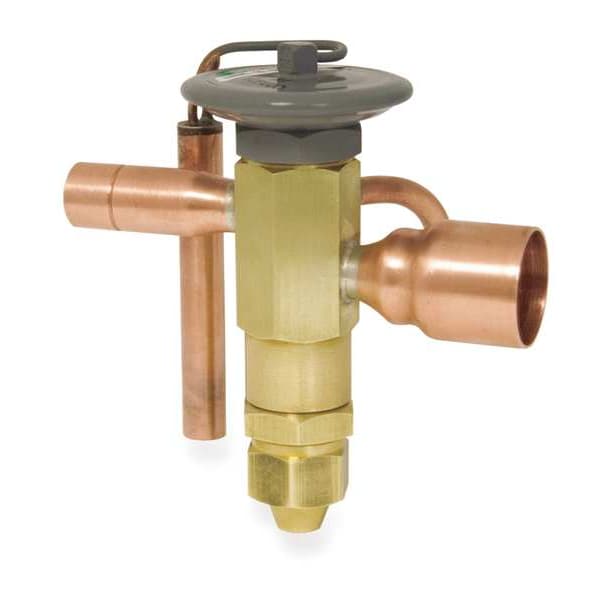

Parker Themostatic Expansion Valve, 15 Tons EBSE15VX100 - main

Themostatic Expansion Valve, 15 Tons

  • Mfr # EBSE15VX100

  • Zoro # G0981565

product price: $239.99
/ea
Free Shipping & Returns

Key Features

Refrigerant
R-22
Equalizer Type
External
Connection
Straight Through Solder
Evaporator Temp. Range (F)
10 to 60
Parker Model Number
EBSE-15-VX100
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
EBSE15VX100
Zoro #
G0981565
UPC #
687472863403
Country of Origin
United States

Dimensions

Capillary Length (In.)
60 in
Outlet Connection Size
1 1/8 in
Equalizer Connection Size
1/4 in
Strainer Mesh Size
12 mesh
Inlet Connection Size
7/8 in
Capillary Length
5 ft

Details

Refrigerant
R-22
Equalizer Type
External
Connection
Straight Through Solder
Evaporator Temp. Range (F)
10 to 60
Parker Model Number
EBSE-15-VX100
Type
Adjustable
Item
Thermostatic Expansion Valve
Superheat
Externally Adjustable
Balanced Port Design
Balanced
Liquid Subcooling Temp. (F)
10
Includes
Sensing Bulb Mounting Clamp
Connector Inlet (In.)
7/8 in
Control
Accuracy, Maintained Over a Wide Variation in Evaporator Load, Thereby Minimizing Hunting Flood Back and Coil Starving Problems
Not For Use With
Ammonia
ARI Standard
750-70
Nominal Capacity (Tons)
15
Connector Outlet (In.)
1 1/8 in
Operating Pressure - Maximum
450 psi
Not For Refrigerant Type
Ammonia
Superheat Adjustment
Field Adjustable
Nominal Capacity - R-22
15 ton
Inlet Connection Type
Sweat
Equalizer Connection Type
Sweat
Evaporator Temperature - Maximum
60 Degrees F
Application Temperature
Air Conditioning
Evaporator Temperature - Minimum
10 Degrees F
Series
EBS
For Refrigerant Type
R-22
For Capacity - Maximum
15 ton
Product Type
Thermostatic Expansion Valve
Inlet Connection Gender
Female
Connection Material
Copper
Liquid Subcooling Temperature
10 Degrees F
Outlet Connection Gender
Female
Connection Extensions
Extended
Valve Body Material
Brass
Element Type
Removable
Configuration
Straight-Thru

Description

Thermostatic Expansion Valve, Adjustable, R-22, Nominal Capacity (Tons) 15, External, Straight Through Solder Connection, Connector Inlet (In.) 7/8 in, Connector Outlet (In.) 1 1/8 in, EBSE-15-VX100, 10 to 60, Capillary Length (In.) 60 in, Reducing Flare Nut Size (In.) -, 10, Accuracy, Maintained Over a Wide Variation in Evaporator Load, Thereby Minimizing Hunting Flood Back and Coil Starving Problems, Balanced, 750-70, Externally Adjustable, Includes Sensing Bulb Mounting Clamp
