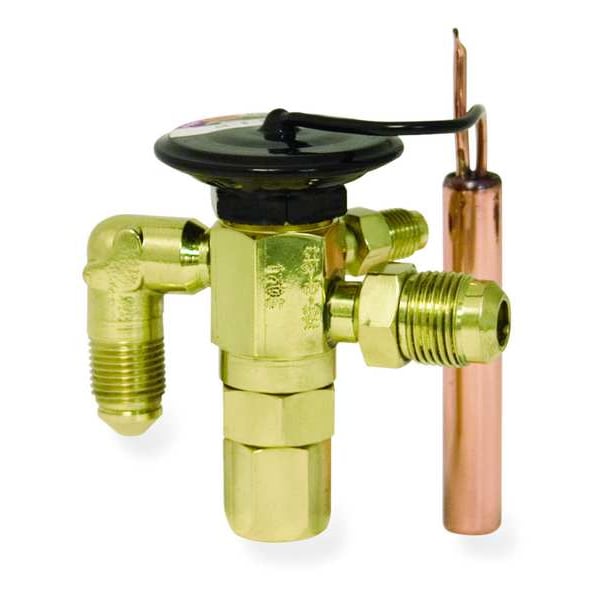

Parker Themostatic Expansion Valve, 2-3 Tons CEBVX100 - main

Themostatic Expansion Valve, 2-3 Tons

  • Mfr # CEBVX100

  • Zoro # G1522665

product price: $134.99
/ea
Free Shipping & Returns

Key Features

Refrigerant
R-22
Equalizer Type
External
Connection
SAE Flare Angle
Evaporator Temp. Range (F)
10 to 60
Includes
Sensing Bulb Mounting Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CEBVX100
Zoro #
G1522665
UPC #
687472464679
Country of Origin
United States

Dimensions

Capillary Length (In.)
30 in
Strainer Mesh Size
100 mesh
Capillary Length
5 ft
Inlet Connection Size
3/8 in
Equalizer Connection Size
1/4 in
Outlet Connection Size
1/2 in

Details

Refrigerant
R-22
Equalizer Type
External
Connection
SAE Flare Angle
Evaporator Temp. Range (F)
10 to 60
Includes
Sensing Bulb Mounting Clamp
Not For Use With
Ammonia
Parker Model Number
CE-B-VX100
Connector Outlet (In.)
1/2 in
ARI Standard
750-70
Item
Thermostatic Expansion Valve
Superheat
Externally Adjustable
Control
Accuracy, Maintained Over a Wide Variation in Evaporator Load, Thereby Minimizing Hunting Flood Back and Coil Starving Problems
Connector Inlet (In.)
3/8 in
Type
Adjustable
Balanced Port Design
Balanced
Nominal Capacity (Tons)
2 to 3
Liquid Subcooling Temp. (F)
10
Series
C
Configuration
Angle
Application Temperature
Air Conditioning
Element Type
Removable
Not For Refrigerant Type
Ammonia
Inlet Connection Type
SAE Flare
Valve Body Material
Brass
Operating Pressure - Maximum
450 psi
Equalizer Connection Type
SAE Flare
For Refrigerant Type
R-22
Evaporator Temperature - Maximum
60 Degrees F
Superheat Adjustment
Field Adjustable
Outlet Connection Type
SAE Flare
Nominal Capacity - R-22
0.5 ton
For Capacity - Minimum
0.1 ton
Evaporator Temperature - Minimum
10 Degrees F
For Capacity - Maximum
8 ton
Liquid Subcooling Temperature
10 Degrees F
Product Type
Thermostatic Expansion Valve

Description

Thermostatic Expansion Valve, Adjustable, R-22, Nominal Capacity (Tons) 2 to 3, External, SAE Flare Angle Connection, Connector Inlet (In.) 3/8 in, Connector Outlet (In.) 1/2 in, CE-B-VX100, 10 to 60, Capillary Length (In.) 30 in, Reducing Flare Nut Size (In.) -, 10, Accuracy, Maintained Over a Wide Variation in Evaporator Load, Thereby Minimizing Hunting Flood Back and Coil Starving Problems, Balanced, 750-70, Externally Adjustable, Includes Sensing Bulb Mounting Clamp, Adjustable Range -
