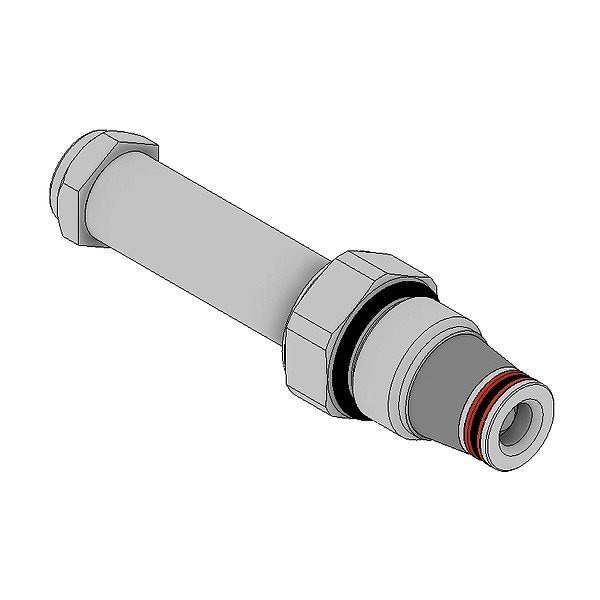

VALVE ASSEMBLY-10
Mfr # DSL102C
Zoro # G515920906
product price:Â
$
74.69
/ea
Key Features
Body Material
Steel
Overall Height
3.99 in
Overall Length
2.62 in
Overall Width
1.43 in
Series
DSL102
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- DSL102C
- Zoro #
- G515920906
- UPC #
- -
- Country of Origin
- Mexico
- Item
- Spool Valve
- Body Material
- Steel
- Series
- DSL102
- Standards
- ISO 4406 18/16/13, SAE Class 4
- Number of Positions
- Two Positions
- Number of Ways
- Two-Way
- Includes Seals
- Seals Included
- Flow Rate - Maximum
- 8 gpm
- Operating Temperature - Minimum
- -35 Degrees F
- Body Finish
- Zinc Plated
- Actuation Mechanism
- Electrical
- Return Mechanism
- Solenoid
- Mounting
- Screw-In
- Fluid Viscosity - Maximum
- 2,000 SUS
- Operating Temperature - Maximum
- 200 Degrees F
- Action Type
- Direct Acting
- Seal Material
- Polyurethane
- Cartridge Material
- Steel
- Valve Action
- Normally Closed
- Pressure Setting - Maximum
- 3,000 psi
- Valve Type
- Spool-Type Solenoid Valve
Description
Spool Valve, Body Material Steel, Number of Positions Two Positions, Valve Action Normally Closed, Adjustment Method Not Applicable, Number of Ways Two-Way, Valve Cavity Size C10-2, Actuation Mechanism Electrical, Overall Length 2.62 in, Overall Width 1.43 in, Overall Height 3.99 in, Flow Rate - Maximum 8 gpm, Voltage Not Applicable, Pressure Setting - Maximum 3,000 psi, Port Connection Dash Size 10, Valve Type Spool-Type Solenoid Valve, Center Position Not Applicable
