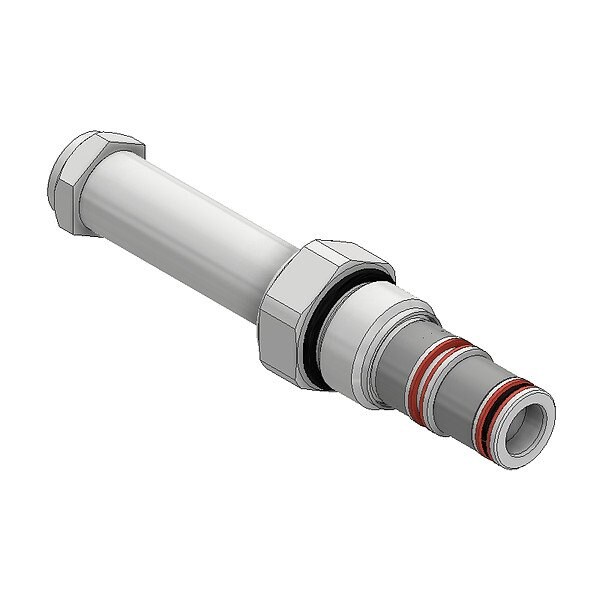

VALVE ASSEMBLY -10
Mfr # DSL103NV
Zoro # G715920942
product price: $79.19
/ea
Free Shipping & Returns
Key Features
Number of Positions
Two Positions
Overall Length
2.62 in
Series
DSL103
Standards
ISO 4406 18/16/13, SAE Class 4
Number of Ways
Three-Way
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
DSL103NV
Zoro #
G715920942
UPC #
-
Country of Origin
Mexico
Dimensions
Overall Length
2.62 in
Overall Height
4.54 in
Overall Width
1.43 in
Valve Cavity Size
C10-3
Port Connection Dash Size
10
Port Connection Size
1.43
Details
Number of Positions
Two Positions
Series
DSL103
Standards
ISO 4406 18/16/13, SAE Class 4
Number of Ways
Three-Way
Item
Spool Valve
Body Material
Steel
Flow Rate - Maximum
8 gpm
Body Finish
Zinc Plated
Fluid Viscosity - Maximum
2,000 SUS
Return Mechanism
Solenoid
Mounting
Screw-In
Operating Temperature - Maximum
400 Degrees F
Includes Seals
Seals Included
Actuation Mechanism
Electrical
Operating Temperature - Minimum
-15 Degrees F
Pressure Setting - Maximum
3,000 psi
Cartridge Material
Steel
Action Type
Direct Acting
Description
Spool Valve, Body Material Steel, Number of Positions Two Positions, Valve Action Not Applicable, Adjustment Method Not Applicable, Number of Ways Three-Way, Valve Cavity Size C10-3, Actuation Mechanism Electrical, Overall Length 2.62 in, Overall Width 1.43 in, Overall Height 4.54 in, Flow Rate - Maximum 8 gpm, Voltage Not Applicable, Pressure Setting - Maximum 3,000 psi, Port Connection Dash Size 10, Center Position Not Applicable, Port Connection Type Not Applicable
