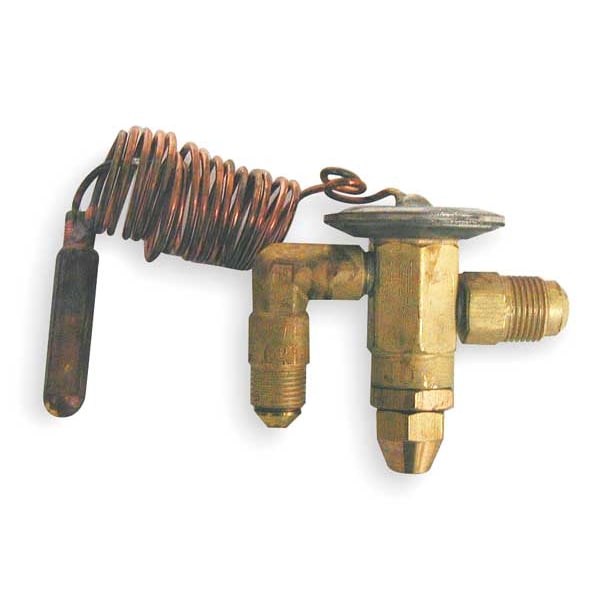

Parker Valve, Expansion CAJW - main

Valve, Expansion

  • Mfr # CAJW

  • Zoro # G3126094

product price: $110.99
/ea
Free Shipping & Returns

Key Features

Refrigerant
R-134A
Equalizer Type
Internal
Connection
SAE Flare Angle
Evaporator Temp. Range (F)
-40 to 60
Liquid Subcooling Temp. (F)
10
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CAJW
Zoro #
G3126094
UPC #
687472676751
Country of Origin
United States

Dimensions

Capillary Length (In.)
60 in
Reducing Flare Nut Size (In.)
3/8 x 1/4
Capillary Length
5 ft
Strainer Mesh Size
100 mesh
Outlet Connection Size
1/2 in
Reducing Flare Nut Size
3/8 in
Inlet Connection Size
3/8 in

Details

Refrigerant
R-134A
Equalizer Type
Internal
Connection
SAE Flare Angle
Evaporator Temp. Range (F)
-40 to 60
Liquid Subcooling Temp. (F)
10
Control
Accuracy, Maintained Over a Wide Variation in Evaporator Load, Thereby Minimizing Hunting Flood Back and Coil Starving Problems
Not For Use With
Ammonia
ARI Standard
750-70
Nominal Capacity (Tons)
1/2 to 1
Type
Adjustable
Connector Inlet (In.)
3/8 in
Connector Outlet (In.)
1/2 in
Parker Model Number
CAJW
Includes
Sensing Bulb Mounting Clamp
Balanced Port Design
Balanced
Item
Thermostatic Expansion Valve
Superheat
Externally Adjustable
Evaporator Temperature - Minimum
-40 Degrees F
Evaporator Temperature - Maximum
60 Degrees F
Valve Body Material
Brass
Not For Refrigerant Type
Ammonia
Element Type
Removable
Operating Pressure - Maximum
450 psi
For Capacity - Maximum
8 ton
Configuration
Angle
Nominal Capacity - General
1 ton
For Capacity - Minimum
0.1 ton
Series
C
For Refrigerant Type
R-134A
Outlet Connection Type
SAE Flare
Inlet Connection Type
SAE Flare
Superheat Adjustment
Field Adjustable
Product Type
Thermostatic Expansion Valve
Liquid Subcooling Temperature
10 Degrees F

Description

Thermostatic Expansion Valve, Adjustable, R-134A, Nominal Capacity (Tons) 1/2 to 1, Internal, SAE Flare Angle Connection, Connector Inlet (In.) 3/8 in, Connector Outlet (In.) 1/2 in, CAJW, -40 to 60, Capillary Length (In.) 60 in, Reducing Flare Nut Size (In.) 3/8 x 1/4, 10, Accuracy, Maintained Over a Wide Variation in Evaporator Load, Thereby Minimizing Hunting Flood Back and Coil Starving Problems, Balanced, 750-70, Externally Adjustable, Includes Sensing Bulb Mounting Clamp
