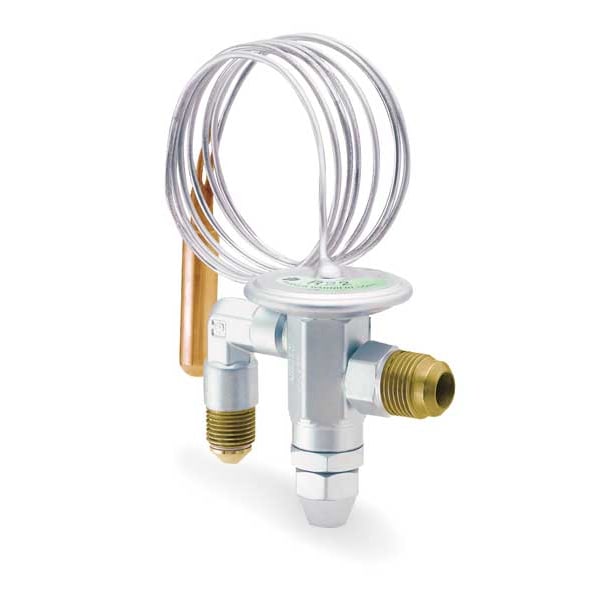

Parker Valve, Expansion CCVW - main

Valve, Expansion

  • Mfr # CCVW

  • Zoro # G1418532

product price: $87.59
/ea
Free Shipping & Returns

Key Features

Refrigerant
R-22
Equalizer Type
Internal
Connection
SAE Flare Angle
Evaporator Temp. Range (F)
-40 to 60
Connector Inlet (In.)
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CCVW
Zoro #
G1418532
UPC #
687472678038
Country of Origin
United States

Dimensions

Capillary Length (In.)
60 in
Reducing Flare Nut Size (In.)
3/8 x 1/4
Strainer Mesh Size
100 mesh
Reducing Flare Nut Size
3/8 in
Outlet Connection Size
1/2 in
Inlet Connection Size
3/8 in
Capillary Length
5 ft

Details

Refrigerant
R-22
Equalizer Type
Internal
Connection
SAE Flare Angle
Evaporator Temp. Range (F)
-40 to 60
Connector Inlet (In.)
3/8 in
Not For Use With
Ammonia
Includes
Sensing Bulb Mounting Clamp
Type
Adjustable
Connector Outlet (In.)
1/2 in
Balanced Port Design
Balanced
Liquid Subcooling Temp. (F)
10
Nominal Capacity (Tons)
3 to 5
Parker Model Number
CCVW
Item
Thermostatic Expansion Valve
Superheat
Externally Adjustable
Control
Accuracy, Maintained Over a Wide Variation in Evaporator Load, Thereby Minimizing Hunting Flood Back and Coil Starving Problems
ARI Standard
750-70
For Refrigerant Type
R-22
Evaporator Temperature - Maximum
60 Degrees F
Series
C
Product Type
Thermostatic Expansion Valve
Inlet Connection Type
SAE Flare
For Capacity - Minimum
0.1 ton
Configuration
Angle
Evaporator Temperature - Minimum
-40 Degrees F
Element Type
Removable
For Capacity - Maximum
8 ton
Operating Pressure - Maximum
450 psi
Valve Body Material
Brass
Not For Refrigerant Type
Ammonia
Nominal Capacity - R-22
5 ton
Superheat Adjustment
Field Adjustable
Outlet Connection Type
SAE Flare
Liquid Subcooling Temperature
10 Degrees F

Description

Thermostatic Expansion Valve, Adjustable, R-22, Nominal Capacity (Tons) 3 to 5, Internal, SAE Flare Angle Connection, Connector Inlet (In.) 3/8 in, Connector Outlet (In.) 1/2 in, CCVW, -40 to 60, Capillary Length (In.) 60 in, Reducing Flare Nut Size (In.) 3/8 x 1/4, 10, Accuracy, Maintained Over a Wide Variation in Evaporator Load, Thereby Minimizing Hunting Flood Back and Coil Starving Problems, Balanced, 750-70, Externally Adjustable, Includes Sensing Bulb Mounting Clamp, Adjustable Range -
