Shop PARKER

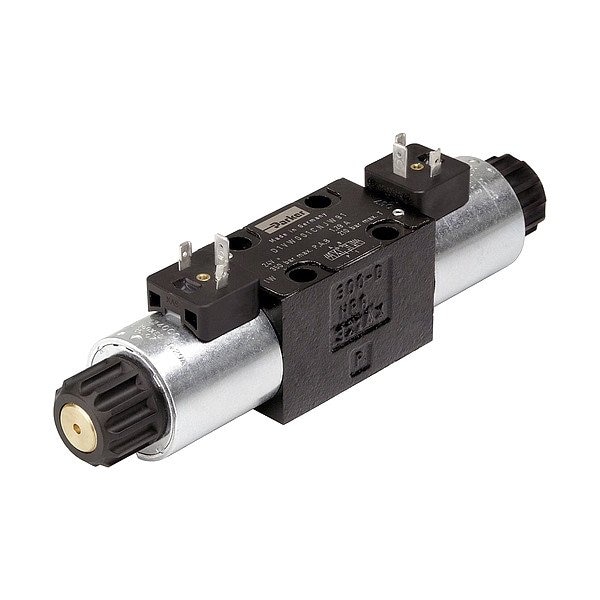

Valve, Hydraulic Valve

  • Mfr # D1VW020DNJW
  • Zoro # G809818544
product price:
$
677.99
/ea
Free Shipping & Returns

Key Features

Actuation Mechanism
Electrical
Fluid Viscosity - Maximum
400 cSt
Inrush Current
1.29 A
Mounting Orientation
Top Mount
Overall Width
46 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D1VW020DNJW
Zoro #
G809818544
UPC #
-
Country of Origin
United States

Dimensions

Overall Width
46 mm
Wire Rope Length
162 mm
NFPA Size
D03
Overall Height
93 mm
Wire Lead Length
50 m
Overall Length
162 mm
Length
162 mm

Details

Actuation Mechanism
Electrical
Fluid Viscosity - Maximum
400 cSt
Item
Valve, Hydraulic Valve
Inrush Current
1.29 A
Mounting Orientation
Top Mount
Pressure - Maximum
350 bar
Valve Control
Directional Control
Number of Positions
Two Positions
Voltage
24V DC
Holding Current
1.29 A
Body Material
Cast Iron
Number of Ways
Three-Way
Seal Material
NBR
Control Direction
Two-Way
Standards
DIN 51524, EN 175301-803
Operating Temperature - Maximum
60 Degrees C
Spool Action
Operated in Position A or B, No Center Position, No Offset Position
Operating Temperature - Minimum
-25 Degrees C
Electrical Connection Type
EN 175301-803 Connector
Port Connections
NG06/CETOP 03
Series
D1VW
Includes Seals
Seals Included
For Media
Oil
Flow Rate - Maximum
70 lpm
Mounting
Subplate-Mounted
Number of Spools
2
Valve Type
Spool

Description

Valve, Hydraulic Valve
