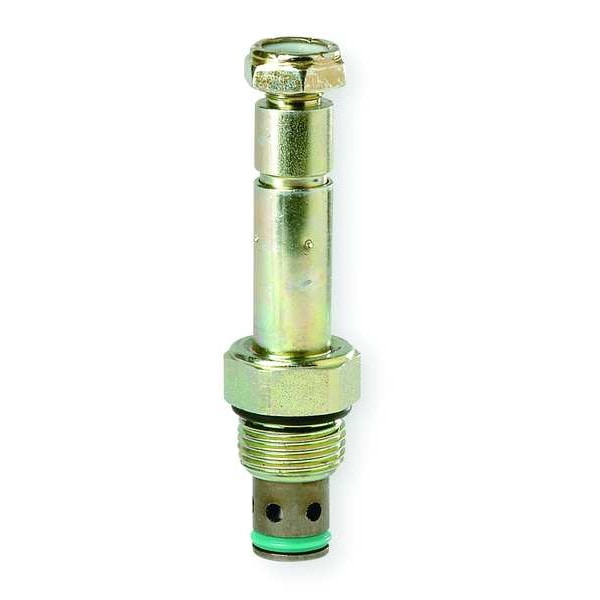

Parker Valve, Solenoid, C10-2 DSL101C - main

Valve, Solenoid, C10-2

  • Mfr # DSL101C

  • Zoro # G0844085

product price: $70.79
/ea

Key Features

Body Material
Steel
Number of Positions
Two Positions
Number of Ways
Two-Way
Valve Cavity Size
C10-2
Overall Height
2.74 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DSL101C
Zoro #
G0844085
UPC #
-
Country of Origin
Mexico

Dimensions

Valve Cavity Size
C10-2
Overall Height
2.74 in
Overall Length
3.99 in
Overall Width
1 in
Hex Size
1 in

Details

Item
Threaded Cartridge Valve
Body Material
Steel
Number of Positions
Two Positions
Number of Ways
Two-Way
Voltage
115V AC, 12V DC, 24V DC
Max. Pressure (PSI)
3600
Valve Type
Poppet-Type Solenoid Valve
Valve Cavity
C10-2
Application
Poppet valves are often used on single operation actuators or unloading functions.
Cartridge Valve Type
Normally Closed Solenoid
Cartridge Valve Item
Cartridge Valve
Valve Ways and Positions
2-Way/2-Position
Max. Pressure - Hydraulic Valves
3,600 psi
Max. Flow - Hydraulic Valves
15 gpm
Position
2
Way
2
Max. Flow GPM
15
Valve Control
Directional Control
Pressure Setting - Maximum
3,600 psi
Standards
ISO 4406 18/16/13
Fluid Viscosity - Maximum
2,000 SUS
Inlet Pressure - Maximum
3,600 psi
Includes Filter
Filter Not Included
Valve Action
Normally Closed
Operating Temperature - Maximum
200 Degrees F
Actuation Mechanism
Electrical
Operating Temperature - Minimum
-35 Degrees F
Includes Seals
Seals Included
Cartridge Material
Steel
Mounting
Block-Mounted
Body Finish
Zinc Plated
Flow Rate - Maximum
15 gpm
For Media
Mineral Oil, Synthetic Oil
Leakage
0.33 cc/min
Control Direction
One-Way
Series
DSL101

Description

Threaded Cartridge Valve, Body Material Steel, Number of Positions Two Positions, Valve Action Normally Closed, Adjustment Method Not Applicable, Number of Ways Two-Way, Valve Cavity Size C10-2, Actuation Mechanism Electrical, Overall Length 3.99 in, Overall Width 1 in, Overall Height 2.74 in, Flow Rate - Maximum 15 gpm, Voltage 115V AC, 12V DC, 24V DC, Pressure Setting - Maximum 3,600 psi, Port Connection Dash Size Not Applicable, Valve Type Poppet-Type Solenoid Valve
