  11. Valve, Solenoid, C10-3

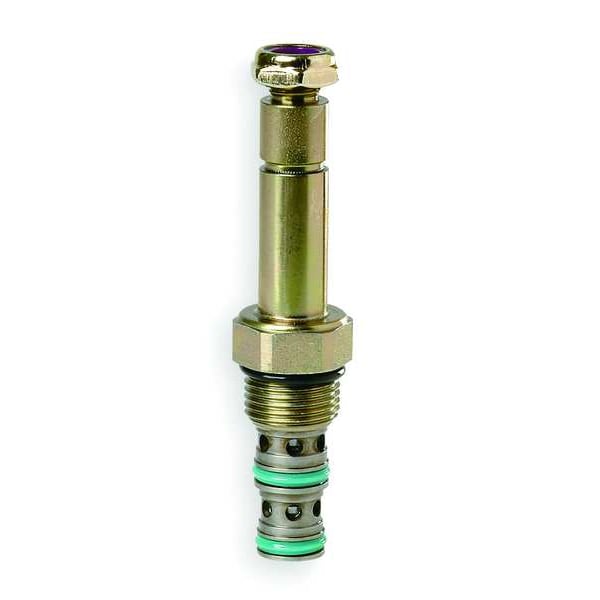

Parker Valve, Solenoid, C10-3 DSL103A - main

Valve, Solenoid, C10-3

  • Mfr # DSL103A

  • Zoro # G2699015

product price: $98.39
/ea
Free Shipping & Returns

Key Features

Body Material
Steel
Number of Positions
Two Positions
Number of Ways
Three-Way
Valve Cavity Size
C10-3
Overall Height
2.74 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DSL103A
Zoro #
G2699015
UPC #
-
Country of Origin
Mexico

Dimensions

Valve Cavity Size
C10-3
Overall Height
2.74 in
Overall Length
4.54 in
Overall Width
1 in
Hex Size
1 in

Details

Item
Threaded Cartridge Valve
Body Material
Steel
Number of Positions
Two Positions
Number of Ways
Three-Way
Voltage
115V AC, 12V DC, 24V DC
Max. Pressure (PSI)
3600
Valve Type
Spool-Type Solenoid Valve
Max. Pressure - Hydraulic Valves
3,600 psi
Position
2
Max. Flow - Hydraulic Valves
4.5 gpm
Valve Ways and Positions
3-Way/2-Position
Application
3 Way spool valves are often used for raise and lower functions of a single acting cylinder, control of a uni-directional motor, or a circuit selector
Way
3
Max. Flow GPM
4.5
Cartridge Valve Item
Cartridge Valve
Valve Cavity
C10-3
Cartridge Valve Type
3-Way Solenoid
Fluid Viscosity - Maximum
2,000 SUS
Operating Temperature - Minimum
-35 Degrees F
Standards
ISO 4406 18/16/13
Valve Action
Normally Closed
Pressure Setting - Maximum
3,600 psi
Valve Control
Directional Control
Action Type
Direct Acting
Cartridge Material
Steel
Operating Temperature - Maximum
200 Degrees F
Series
DSL103
Includes Filter
Filter Not Included
For Media
Mineral Oil, Synthetic Oil
Mounting
Block-Mounted
Body Finish
Zinc Plated
Flow Rate - Maximum
4.5 gpm
Inlet Pressure - Maximum
3,600 psi
Actuation Mechanism
Electrical
Leakage
120 cu in/min
Includes Seals
Seals Included

Description

Threaded Cartridge Valve, Body Material Steel, Number of Positions Two Positions, Valve Action Normally Closed, Adjustment Method Not Applicable, Number of Ways Three-Way, Valve Cavity Size C10-3, Actuation Mechanism Electrical, Overall Length 4.54 in, Overall Width 1 in, Overall Height 2.74 in, Flow Rate - Maximum 4.5 gpm, Voltage 115V AC, 12V DC, 24V DC, Pressure Setting - Maximum 3,600 psi, Port Connection Dash Size Not Applicable, Valve Type Spool-Type Solenoid Valve
