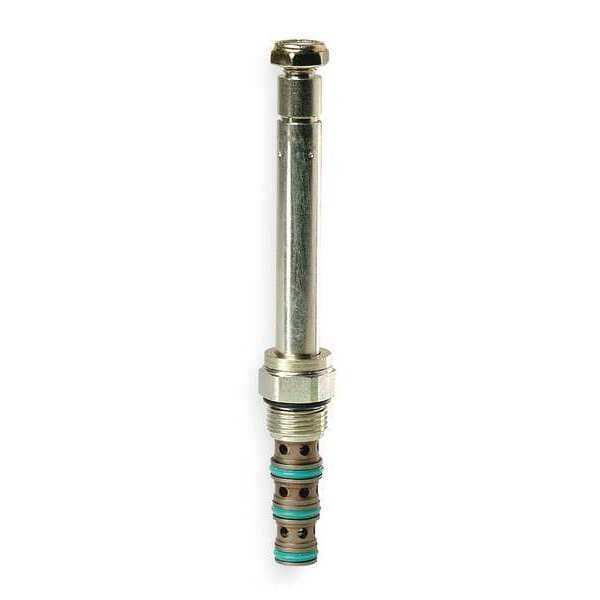

Parker Valve, Solenoid, C10-4 DSL105C1 - main

Valve, Solenoid, C10-4

  • Mfr # DSL105C1

  • Zoro # G2148492

product price: $173.99
/ea
Free Shipping & Returns

Key Features

Body Material
Steel
Number of Positions
Three Positions
Number of Ways
Four-Way
Valve Cavity Size
C10-4
Overall Height
4.86 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DSL105C1
Zoro #
G2148492
UPC #
-
Country of Origin
Mexico

Dimensions

Valve Cavity Size
C10-4
Overall Height
4.86 in
Overall Length
7.29 in
Overall Width
1 in
Hex Size
1 in

Details

Item
Threaded Cartridge Valve
Body Material
Steel
Number of Positions
Three Positions
Number of Ways
Four-Way
Voltage
115V AC, 12V DC, 24V DC
Max. Pressure (PSI)
3600
Valve Type
Spool-Type Solenoid Valve
Cartridge Valve Item
Cartridge Valve
Way
4
Valve Cavity
C10-4
Center
Closed
Position
3
Max. Pressure - Hydraulic Valves
3,600 psi
Max. Flow GPM
7
Application
4 Way spool valves are often used for the raise / lower function of a double acting cylinder, or as a forward / reverse function of bi-directional motors. The center position can be used to stop the actuator in mid-stroke, or dump pump flow.
Valve Ways and Positions
4-Way/3-Position
Max. Flow - Hydraulic Valves
7 gpm
Cartridge Valve Type
Directional Control Valve
Includes Filter
Filter Not Included
Center Position
Closed Center
For Media
Mineral Oil, Synthetic Oil
Operating Temperature - Maximum
200 Degrees F
Series
DSL105
Valve Control
Directional Control
Operating Temperature - Minimum
-35 Degrees F
Valve Action
Normally Closed
Mounting
Block-Mounted
Includes Seals
Seals Included
Inlet Pressure - Maximum
3,600 psi
Body Finish
Zinc Plated
Standards
ISO 4406 18/16/13
Flow Rate - Maximum
7 gpm
Pressure Setting - Maximum
3,600 psi
Leakage
160 cu in/min
Actuation Mechanism
Electrical
Action Type
Direct Acting
Cartridge Material
Steel
Fluid Viscosity - Maximum
2,000 SUS

Description

Threaded Cartridge Valve, Body Material Steel, Number of Positions Three Positions, Valve Action Normally Closed, Adjustment Method Not Applicable, Number of Ways Four-Way, Valve Cavity Size C10-4, Actuation Mechanism Electrical, Overall Length 7.29 in, Overall Width 1 in, Overall Height 4.86 in, Flow Rate - Maximum 7 gpm, Voltage 115V AC, 12V DC, 24V DC, Pressure Setting - Maximum 3,600 psi, Port Connection Dash Size Not Applicable, Valve Type Spool-Type Solenoid Valve
