Shop PASS & SEYMOUR

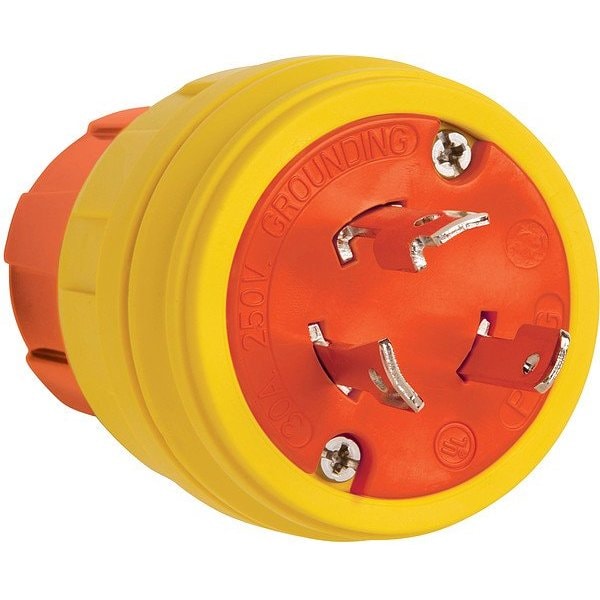

Locking Plug, 30 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

  • Mfr # 28W48AM

  • Zoro # G314760512

product price:
$
82.39
/ea

Key Features

NEMA Plug Configuration
L6-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
28W48AM
Zoro #
G314760512
UPC #
785007057157
Country of Origin
United States

Dimensions

Outside Diameter
1.85 in
Maximum Wire Size
10 AWG
Face Diameter
1.85 in
Body Length
2.62 in
Minimum Wire Size
14 AWG
Length
2.62 in
For Minimum Cable Diameter
0.475 in
For Maximum Cable Diameter
0.72 in
Overall Length
2.62 in
Wire Rope Length
2.62 in

Details

Item
Locking Plug
NEMA Plug Configuration
L6-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Standards
CSA Certified, JIS Z2801, NSF Certified, RoHS Compliant, UL Listed
Resistance Properties
Antimicrobial, Moisture Resistant, UV/Sunlight Resistant, Watertight
IP Rating
IP65, IP66, IP67
Grade
General Use
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
For Environment
Food and Beverage, Sanitary, Clean Room, Institutional
Housing Material
Thermoplastic Elastomer
Midget Locking
No
Features
Anti-Microbial Additive Resistant to Scuffing and Cleaning, Anti-Microbial Additives Embedded in Polymer and Inhibits Growth of Bacteria, Molds, Mildews and Fungi, Keyed Body and Cover for Alignment, Patent Pending, Resistant to High Pressure Hose-Down ApplicationsTongue and Groove Environmental Sealing
Maximum Operating Temperature
140 Degrees F
Blade Material
Nickel-Plated Brass
Series
TURNLOK(R)
Power and Ground Indicating Light
No
UL 94 Flammability Rating
V-0

Description

Locking Plug, Connection Orientation Straight, Current Rating 30 A, Housing Color Yellow, Housing Material Thermoplastic Elastomer, NEMA Plug Configuration L6-30P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Antimicrobial, Moisture Resistant, UV/Sunlight Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.85 in, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.475 in
