Shop PASS & SEYMOUR

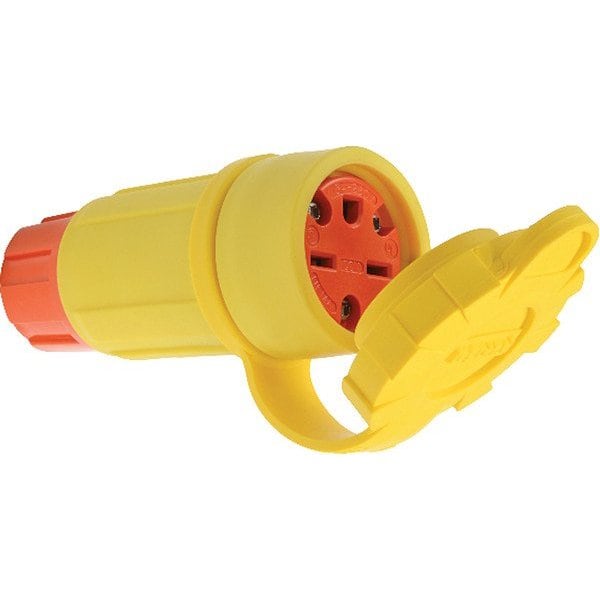

Straight Blade Connector, Non-NEMA, 15 A, 250V AC, 2 Pole, 3 Wire, Screw Terminals, Yellow

  • Mfr # 15W49AM

  • Zoro # G014760560

product price:  $52.15
/ea

Key Features

NEMA Receptacle Configuration
Non-NEMA
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
15W49AM
Zoro #
G014760560
UPC #
785007057027
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.12 in
For Minimum Cable Diameter
0.18 in
Maximum Wire Size
12 AWG
Minimum Wire Size
18 AWG
Overall Length
4.03 in
Wire Rope Length
4.03 in

Details

Item
Straight Blade Connector
NEMA Receptacle Configuration
Non-NEMA
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Non-Grounded
Housing Color
Yellow
Cap Type
Flip-Up Cap
IP Rating
IP67
Standards
CSA Certified, FSUL, NSF Certified, RoHS Compliant, UL Listed
Resistance Properties
Antimicrobial, Moisture Resistant, UV/Sunlight Resistant
Maximum Operating Temperature
140 deg F
For Environment
Food and Beverage, Sanitary, Clean Room, Institutional
Market
Commercial
Housing Material
Thermoplastic Elastomer
UL 94 Flammability Rating
HB, V-0, V-2
Contact Material
Nickel-Plated Brass
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1 1/2 hp
Grade
Federal Specification
Power Indicating Light
No
Shrouded
No

Description

Straight Blade Connector, Connection Orientation Straight, Current Rating 15 A, Housing Color Yellow, NEMA Receptacle Configuration Non-NEMA, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Antimicrobial, Moisture Resistant, UV/Sunlight Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Cap Type Flip-Up Cap, For Maximum Cable Diameter 0.08 in, For Minimum Cable Diameter 0.04 in, Grade Federal Specification, Grounding Grounded
