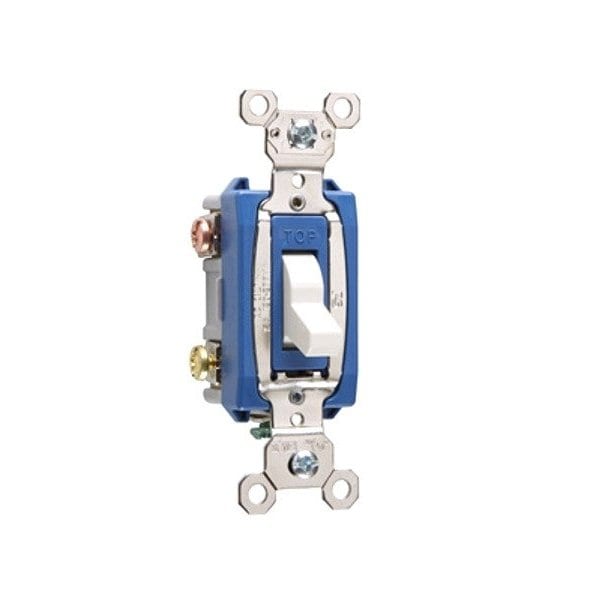

Wall Switch, 2 hp, Toggle, 15 A, White
Mfr # PS15AC3w
Zoro # G216332800
product price:Â
$
32.19
/ea
Key Features
Switch Type
3-Way
Switch Style
Toggle
Color
White
Wiring Method
Back, Side
Standards
CSA Certified File Number LR17446, CSA-C22.2 No. 111, Federal Specification WS896, NEMA WD-1 and WD-6, UL Listed File Number E140597 Standard UL 20
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PS15AC3w
- Zoro #
- G216332800
- UPC #
- 785007196580
- Country of Origin
- Mexico
Dimensions
- Minimum Wire Size
- 14 AWG
- Mount Hole Center-to-Center Height
- 3.3 in
- Maximum Wire Size
- 10 AWG
- Switch Depth
- 1.1 in
- Switch Height
- 2.4 in
- Overall Width
- 1.3 in
Description
Wall Switch, Color White, Current Rating 15 A, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 2 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Number of Switches 1, Resistance Properties Chemical Resistant, Heat Resistant, Impact Resistant, Standards CSA Certified File Number LR17446, CSA-C22.2 No. 111, Federal Specification WS896, NEMA WD-1 and WD-6, UL Listed File Number E140597 Standard UL 20
