Shop PASS & SEYMOUR

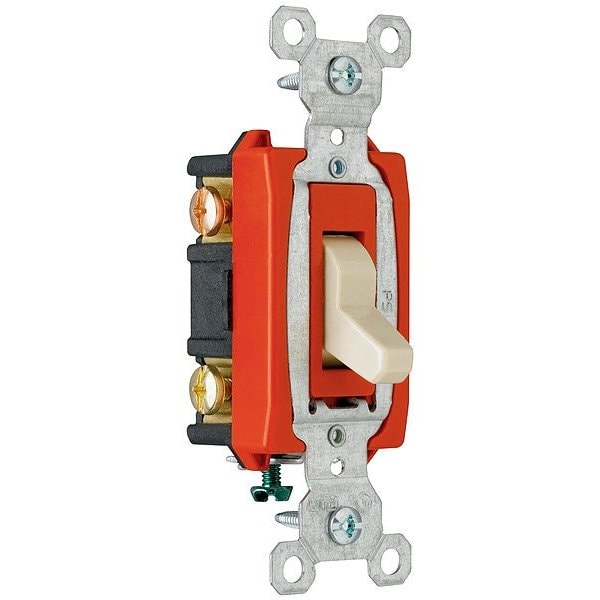

Wall Switch, 2 hp, Toggle, 20 A, Ivory

  • Mfr # CS20AC3I

  • Zoro # G416332648

product price:
$
9.79
/ea

Key Features

Switch Type
3-Way
Switch Style
Toggle
Color
Ivory
Wiring Method
Side
Standards
CSA Certified File Number LR17446, CSA-C22.2 No. 111, Federal Specification WS896, NEMA WD-1 and WD-6, UL Listed File Number E140597 Standard UL 20
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CS20AC3I
Zoro #
G416332648
UPC #
785007126532
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Switch Depth
1.1 in
Minimum Wire Size
14 AWG
Overall Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Switch Height
2.4 in

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Toggle
Color
Ivory
Wiring Method
Side
Standards
CSA Certified File Number LR17446, CSA-C22.2 No. 111, Federal Specification WS896, NEMA WD-1 and WD-6, UL Listed File Number E140597 Standard UL 20
Features
Single Piece Plated Steel Mounting Strap
Maximum Operating Temperature
115 Degrees C
Number of Switches
1
Voltage Rating
120/277V AC
Strap Material
Nickel-Plated Steel
Resistance Properties
Corrosion Resistant
Current Rating
20 A
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-40 Degrees C
Housing Material
Glass-Reinforced Nylon
Switch Material
Thermoplastic Polycarbonate
Horsepower Rating
2 hp
Grounding
Grounded
Market
Commercial
Contact Material
Silver Alloy
Switch Function
Maintained
Nightlight
No
Illuminated
No

Description

Wall Switch, Color Ivory, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Side, Horsepower Rating 2 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Nightlight No, Number of Switches 1, Resistance Properties Corrosion Resistant
