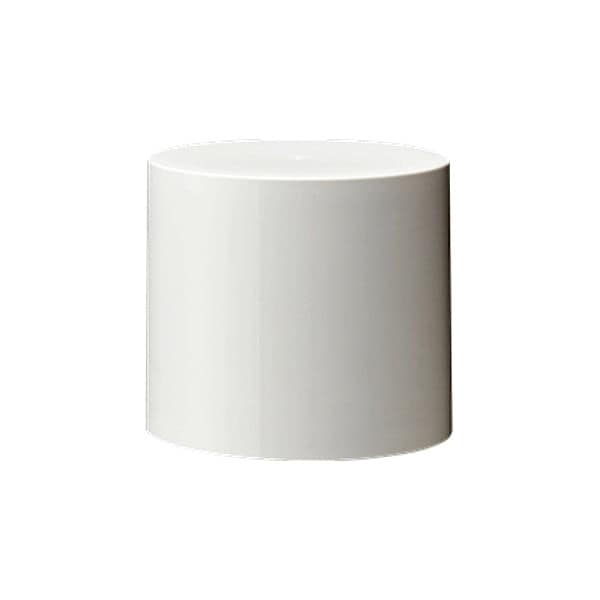

Buzzer Unit, 24V DC, White, 2 3/8 in Dia., 2 1/8 in Height, LR6+FB295 Series
Mfr # LR6-BW+FB295
Zoro # G510993776
product price:Â $62.99
/eaKey Features
Standards
CSA-C22.2 No.14, EMC Directive (EN 61000-6-4, EN 61000-6-2), RoHS Directive (EN 50581), UL 508
Voltage
24V DC
Overall Diameter
2 3/8 in
Housing Material
Polycarbonate
Overall Height
2 1/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LR6-BW+FB295
- Zoro #
- G510993776
- UPC #
- -
- Country of Origin
- Indonesia
Dimensions
- Overall Diameter
- 2 3/8 in
- Overall Height
- 2 1/8 in
- Diameter
- 60 mm
- Height
- 53.5 mm
Details
- Item
- Buzzer Unit
- Standards
- CSA-C22.2 No.14, EMC Directive (EN 61000-6-4, EN 61000-6-2), RoHS Directive (EN 50581), UL 508
- Voltage
- 24V DC
- Housing Material
- Polycarbonate
- Color
- White
- Tower Light Series
- LR6+FB295
- For Use With
- LR6 Signal Towers
- Housing Color
- White
- Sound Modes
- Continuous Beep, Rapid Hi-Lo, Rapid Intermittent Beep, Sweep
- Sound Level
- 88 dB
- NEMA Rating
- IP67, IP69K
- Operating Temperature - Maximum
- 50 Degrees C
- Compatible Series
- LR6+FB295
- Operating Current
- .04 A @ 24V DC
- IP Rating
- IP69K
- Operating Temperature - Minimum
- -20 Degrees C
- Sound Volume - Maximum
- 88 dB
- Sound Style
- Buzzer
- Sound Operating Mode
- Intermittent
- Operating Voltage
- 24V DC
Description
Tower Light Series LR6+FB295, Voltage 24V DC, Sound Level 88 dB, Sound Modes Continuous Beep, Rapid Hi-Lo, Rapid Intermittent Beep, Sweep, NEMA Rating IP67, IP69K, Diameter 60 mm, Color White, For Use With LR6 Signal Towers, Width Not Applicable, Height 53.5 mm, Housing Material Polycarbonate, Standards CSA-C22.2 No.14, EMC Directive (EN 61000-6-4, EN 61000-6-2), RoHS Directive (EN 50581), UL 508, Buzzer Unit
