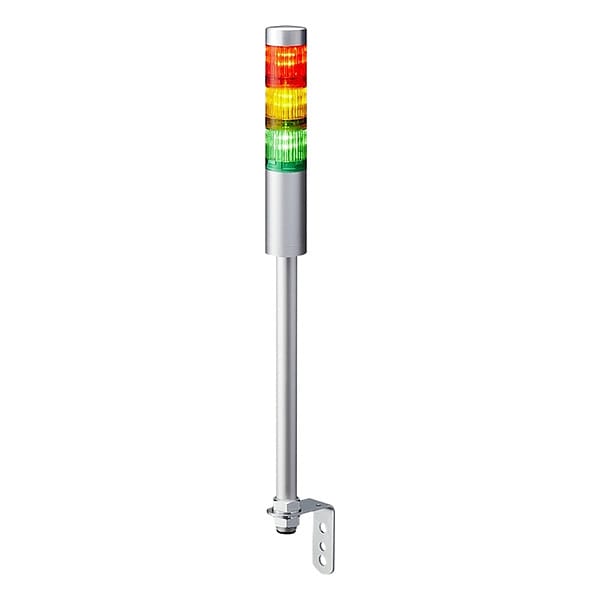

Patlite Tower Light Assemblies LR4-302LJNU-RYG - main

Tower Light Assemblies

  • Mfr # LR4-302LJNU-RYG

  • Zoro # G912481338

product price: $184.99
/ea
Free Shipping & Returns

Key Features

Standards
UL 508, CSA-C22.2 No. 14, EMC Directive (EN 61000-6-4, EN 61000-6-2), RoHS Directive (EN IEC 63000), FCC Part 15 Subpart B Class A, KC (KN 61000-6-4, KN 61000-6-2)
Voltage
24V DC
Overall Diameter
40 mm
Housing Material
Polycarbonate
Light Operating Mode
Steady
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR4-302LJNU-RYG
Zoro #
G912481338
UPC #
-
Country of Origin
Indonesia

Dimensions

Overall Diameter
40 mm

Details

Item
Tower Light Assembly
Standards
UL 508, CSA-C22.2 No. 14, EMC Directive (EN 61000-6-4, EN 61000-6-2), RoHS Directive (EN IEC 63000), FCC Part 15 Subpart B Class A, KC (KN 61000-6-4, KN 61000-6-2)
Voltage
24V DC
Housing Material
Polycarbonate
Light Operating Mode
Steady
Water Resistance
Water Resistant
Number of Light Tiers
3
Operating Temperature - Minimum
-20 Degrees C
Housing Color
Silver
NEMA Rating
NEMA 13, NEMA 4X
Operating Temperature - Maximum
50 Degrees C
Includes Mounting Hardware
Mounting Hardware Included
For Location
Indoor
IP Rating
IP54
Control Protocol
Direct Wire
Light Intensity
2,000 mcd
Light Tier Color
Amber, Green, Red
Wattage
1.3 W
Light Source
LED
Includes Sounder Tier
No Sounder Tier
Connection Type
Wire Leads
Operating Current
Max. 0.135 A, Typ. 0.12A
Mounting Mechanism
Bracket
Operating Voltage
24V DC

Description

NEMA Rating NEMA 13, NEMA 4X, Not Applicable Flashes per Minute, Housing Material Polycarbonate, Standards UL 508, CSA-C22.2 No. 14, EMC Directive (EN 61000-6-4, EN 61000-6-2), RoHS Directive (EN IEC 63000), FCC Part 15 Subpart B Class A, KC (KN 61000-6-4, KN 61000-6-2), Tower Light Assembly
