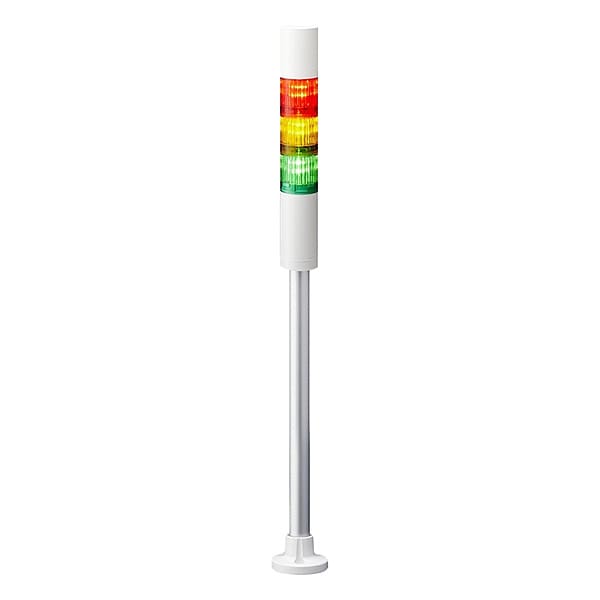

Patlite Tower Light Assemblies LR4-302PJBW-RYG - main

Tower Light Assemblies

  • Mfr # LR4-302PJBW-RYG

  • Zoro # G812481308

product price: $217.99
/ea
Free Shipping & Returns

Key Features

Standards
UL 508, CSA-C22.2 No. 14, EMC Directive (EN 61000-6-4, EN 61000-6-2), RoHS Directive (EN IEC 63000), FCC Part 15 Subpart B Class A, KC (KN 61000-6-4, KN 61000-6-2)
Voltage
24V DC
Overall Diameter
40 mm
Housing Material
Polycarbonate
Flashes per Minute
60
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR4-302PJBW-RYG
Zoro #
G812481308
UPC #
-
Country of Origin
Indonesia

Dimensions

Overall Diameter
40 mm

Details

Item
Tower Light Assembly
Standards
UL 508, CSA-C22.2 No. 14, EMC Directive (EN 61000-6-4, EN 61000-6-2), RoHS Directive (EN IEC 63000), FCC Part 15 Subpart B Class A, KC (KN 61000-6-4, KN 61000-6-2)
Voltage
24V DC
Housing Material
Polycarbonate
Flashes per Minute
60
For Location
Indoor
Wattage
1.3 W
Light Operating Mode
Flashing, Steady
Light Intensity
2,000 mcd
Operating Temperature - Minimum
-20 Degrees C
Housing Color
Off White
Operating Current
Max. 0.385 A, Typ. 0.16 A
Control Protocol
Direct Wire
IP Rating
IP54
Light Source
LED
Sound Style
Buzzer
Operating Temperature - Maximum
50 Degrees C
Connection Type
Wire Leads
Includes Mounting Hardware
Mounting Hardware Included
Includes Sounder Tier
Sounder Tier Included
Mounting Mechanism
Bracket
Number of Light Tiers
3
NEMA Rating
NEMA 13, NEMA 4X
Sound Volume - Maximum
85 dB
Sound Operating Mode
Steady, Intermittent
Water Resistance
Water Resistant
Light Tier Color
Amber, Green, Red
Operating Voltage
24V DC

Description

NEMA Rating NEMA 13, NEMA 4X, 60 Flashes per Minute, Housing Material Polycarbonate, Standards UL 508, CSA-C22.2 No. 14, EMC Directive (EN 61000-6-4, EN 61000-6-2), RoHS Directive (EN IEC 63000), FCC Part 15 Subpart B Class A, KC (KN 61000-6-4, KN 61000-6-2), Tower Light Assembly
