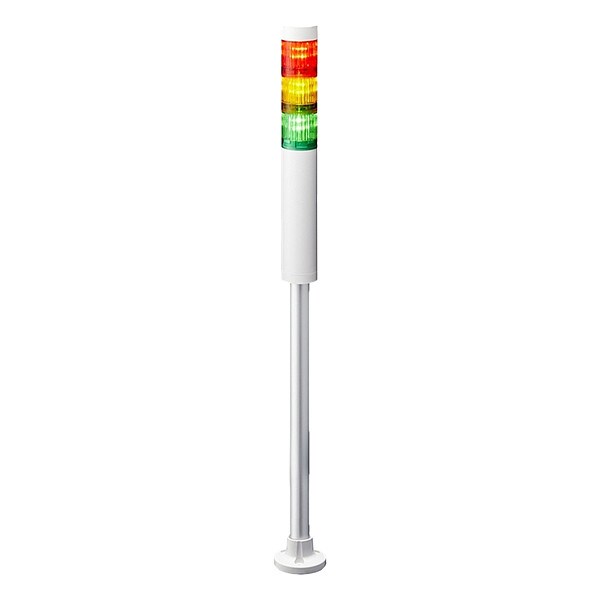

Tower Light Assemblies
Mfr # LR4-3M2PJNW-RYG
Zoro # G212481311
product price:Â
$
250.99
/ea
Free Shipping & Returns
Key Features
Standards
UL 508, CSA-C22.2 No. 14EMC Directive (EN 61000-6-4, EN 61000-6-2)RoHS Directive (EN IEC 63000)FCC Part 15 Subpart B Class AKC (KN 61000-6-4, KN 61000-6-2)Low Voltage Directive(IEC/EN60947-5-1,EN62471)
Voltage
100 to 240V AC
Overall Diameter
40 mm
Housing Material
Polycarbonate
Includes Sounder Tier
No Sounder Tier
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LR4-3M2PJNW-RYG
- Zoro #
- G212481311
- UPC #
- -
- Country of Origin
- Japan
- Item
- Tower Light Assembly
- Standards
- UL 508, CSA-C22.2 No. 14EMC Directive (EN 61000-6-4, EN 61000-6-2)RoHS Directive (EN IEC 63000)FCC Part 15 Subpart B Class AKC (KN 61000-6-4, KN 61000-6-2)Low Voltage Directive(IEC/EN60947-5-1,EN62471)
- Voltage
- 100 to 240V AC
- Housing Material
- Polycarbonate
- Includes Sounder Tier
- No Sounder Tier
- Light Intensity
- 2,000 mcd
- Light Tier Color
- Amber, Green, Red
- Connection Type
- Wire Leads
- Light Source
- LED
- Operating Temperature - Minimum
- -20 Degrees C
- Mounting Mechanism
- Bracket
- Operating Temperature - Maximum
- 50 Degrees C
- Housing Color
- Off White
- Wattage
- 1.3 W
- Operating Current
- Max. 0.135A, Typ.0.12A
- Control Protocol
- Direct Wire
- Number of Light Tiers
- 3
- NEMA Rating
- NEMA 13, NEMA 4X
- IP Rating
- IP65
- Includes Mounting Hardware
- Mounting Hardware Included
- For Location
- Indoor
- Water Resistance
- Water Resistant
- Operating Voltage
- 100 to 240V AC
Description
NEMA Rating NEMA 13, NEMA 4X, Not Applicable Flashes per Minute, Housing Material Polycarbonate, Standards UL 508, CSA-C22.2 No. 14EMC Directive (EN 61000-6-4, EN 61000-6-2)RoHS Directive (EN IEC 63000)FCC Part 15 Subpart B Class AKC (KN 61000-6-4, KN 61000-6-2)Low Voltage Directive(IEC/EN60947-5-1,EN62471), Tower Light Assembly
