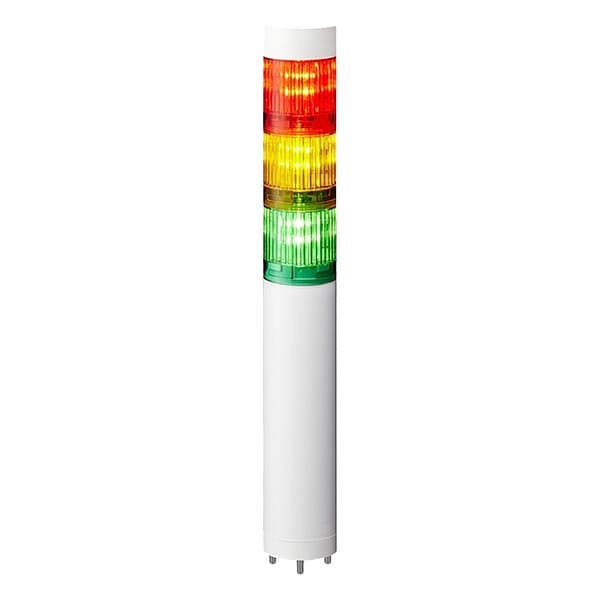

Patlite Tower Light Assemblies LR4-3M2WJNW-RYG - main

Tower Light Assemblies

  • Mfr # LR4-3M2WJNW-RYG

  • Zoro # G812481339

product price: $247.99
/ea
Free Shipping & Returns

Key Features

Standards
UL 508, CSA-C22.2 No. 14EMC Directive (EN 61000-6-4, EN 61000-6-2)RoHS Directive (EN IEC 63000)FCC Part 15 Subpart B Class AKC (KN 61000-6-4, KN 61000-6-2)Low Voltage Directive(IEC/EN60947-5-1,EN62471)
Voltage
100 to 240V AC
Overall Diameter
40 mm
Housing Material
Polycarbonate
Light Tier Color
Amber, Green, Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR4-3M2WJNW-RYG
Zoro #
G812481339
UPC #
-
Country of Origin
Indonesia

Dimensions

Overall Diameter
40 mm

Details

Item
Tower Light Assembly
Standards
UL 508, CSA-C22.2 No. 14EMC Directive (EN 61000-6-4, EN 61000-6-2)RoHS Directive (EN IEC 63000)FCC Part 15 Subpart B Class AKC (KN 61000-6-4, KN 61000-6-2)Low Voltage Directive(IEC/EN60947-5-1,EN62471)
Voltage
100 to 240V AC
Housing Material
Polycarbonate
Light Tier Color
Amber, Green, Red
Housing Color
Off White
Includes Sounder Tier
No Sounder Tier
Operating Current
Max. 0.135A, Typ.0.12A
Wattage
1.3 W
IP Rating
IP65
Connection Type
Wire Leads
For Location
Indoor
Light Source
LED
Operating Temperature - Minimum
-20 Degrees C
Control Protocol
Direct Wire
Water Resistance
Water Resistant
Number of Light Tiers
3
Operating Temperature - Maximum
50 Degrees C
NEMA Rating
NEMA 13, NEMA 4X
Operating Voltage
100 to 240V AC

Description

NEMA Rating NEMA 13, NEMA 4X, Not Applicable Flashes per Minute, Housing Material Polycarbonate, Standards UL 508, CSA-C22.2 No. 14EMC Directive (EN 61000-6-4, EN 61000-6-2)RoHS Directive (EN IEC 63000)FCC Part 15 Subpart B Class AKC (KN 61000-6-4, KN 61000-6-2)Low Voltage Directive(IEC/EN60947-5-1,EN62471), Tower Light Assembly
