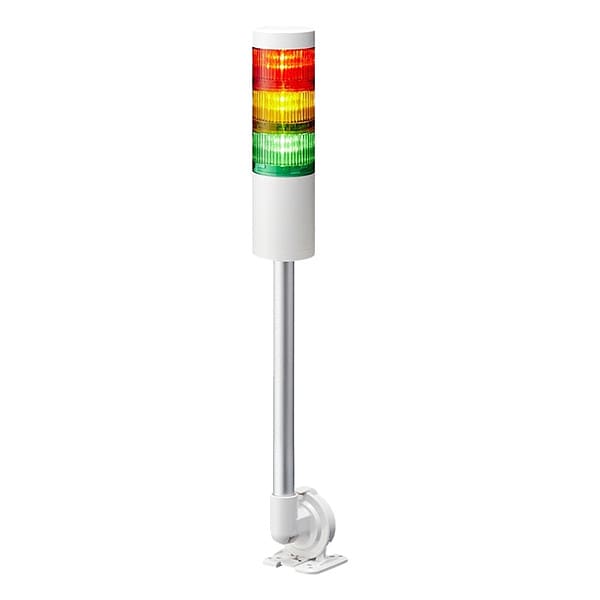

Tower Light Assemblies
Mfr # LR6-302QJNW-RYG
Zoro # G212481342
product price: $181.99
/ea
Free Shipping & Returns
Key Features
Standards
UL 508, CSA-C22.2 No. 14, EMC Directive (EN 61000-6-4, EN 61000-6-2), RoHS Directive (EN IEC 63000), FCC Part 15 Subpart B Class A, KC (KN 61000-6-4, KN 61000-6-2)
Voltage
24V DC
Overall Diameter
60 mm
Housing Color
Off White
Wattage
1.3 W
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
LR6-302QJNW-RYG
Zoro #
G212481342
UPC #
-
Country of Origin
Indonesia
Dimensions
Overall Diameter
60 mm
Details
Item
Tower Light Assembly
Standards
UL 508, CSA-C22.2 No. 14, EMC Directive (EN 61000-6-4, EN 61000-6-2), RoHS Directive (EN IEC 63000), FCC Part 15 Subpart B Class A, KC (KN 61000-6-4, KN 61000-6-2)
Voltage
24V DC
Housing Color
Off White
Wattage
1.3 W
Operating Temperature - Maximum
50 Degrees C
Operating Temperature - Minimum
-20 Degrees C
Light Intensity
2,000 mcd
Mounting Mechanism
Bracket
Includes Mounting Hardware
Mounting Hardware Included
Operating Current
Max. 0.135 A, Typ. 0.12A
IP Rating
IP54
NEMA Rating
NEMA 13, NEMA 4X
Light Operating Mode
Steady
Connection Type
Wire Leads
Control Protocol
Direct Wire
Light Source
LED
For Location
Indoor
Light Tier Color
Amber, Green, Red
Number of Light Tiers
3
Includes Sounder Tier
No Sounder Tier
Water Resistance
Water Resistant
Operating Voltage
24V DC
Description
NEMA Rating NEMA 13, NEMA 4X, Not Applicable Flashes per Minute, Standards UL 508, CSA-C22.2 No. 14, EMC Directive (EN 61000-6-4, EN 61000-6-2), RoHS Directive (EN IEC 63000), FCC Part 15 Subpart B Class A, KC (KN 61000-6-4, KN 61000-6-2), Tower Light Assembly
