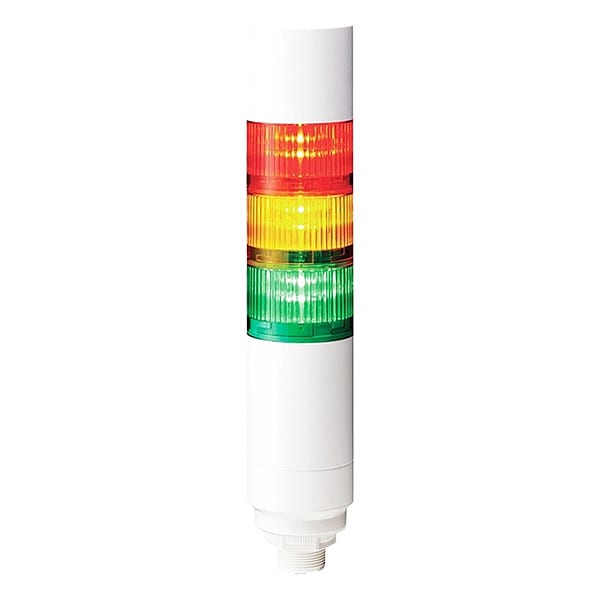

Patlite Tower Light Assemblies LR6-302WCBW-RYG - main

Tower Light Assemblies

  • Mfr # LR6-302WCBW-RYG

  • Zoro # G112481374

product price: $325.99
/ea
Free Shipping & Returns

Key Features

Standards
UL 508, CSA-C22.2 No. 14RoHS Directive (EN IEC 63000)EMC Directive (EN 61000-6-4, EN 61000-6-2)FCC Part 15 SubpartB Class AKC (KN 61000-6-4, KN 61000-6-2)
Voltage
24V DC
Overall Diameter
60 mm
Flashes per Minute
60
Connection Type
8-Pin M12 Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR6-302WCBW-RYG
Zoro #
G112481374
UPC #
-
Country of Origin
Japan

Dimensions

Overall Diameter
60 mm

Details

Item
Tower Light Assembly
Standards
UL 508, CSA-C22.2 No. 14RoHS Directive (EN IEC 63000)EMC Directive (EN 61000-6-4, EN 61000-6-2)FCC Part 15 SubpartB Class AKC (KN 61000-6-4, KN 61000-6-2)
Voltage
24V DC
Flashes per Minute
60
Connection Type
8-Pin M12 Connector
Light Source
LED
Sound Volume - Maximum
88 dB
For Location
Indoor
Control Protocol
Direct Wire
NEMA Rating
NEMA 13, NEMA 4X
Sound Style
Buzzer
Operating Temperature - Maximum
50 Degrees C
Sound Operating Mode
Steady, Intermittent
Includes Sounder Tier
Sounder Tier Included
Light Tier Color
Amber, Green, Red
Number of Light Tiers
3
Housing Color
Off White
Wattage
1.3 W
Operating Current
Max. 0.385 A, Typ. 0.16 A
Operating Temperature - Minimum
-20 Degrees C
Water Resistance
Water Resistant
Light Operating Mode
Flashing, Steady
IP Rating
IP65
Operating Voltage
24V DC

Description

NEMA Rating NEMA 13, NEMA 4X, 60 Flashes per Minute, Standards UL 508, CSA-C22.2 No. 14RoHS Directive (EN IEC 63000)EMC Directive (EN 61000-6-4, EN 61000-6-2)FCC Part 15 SubpartB Class AKC (KN 61000-6-4, KN 61000-6-2), Tower Light Assembly
