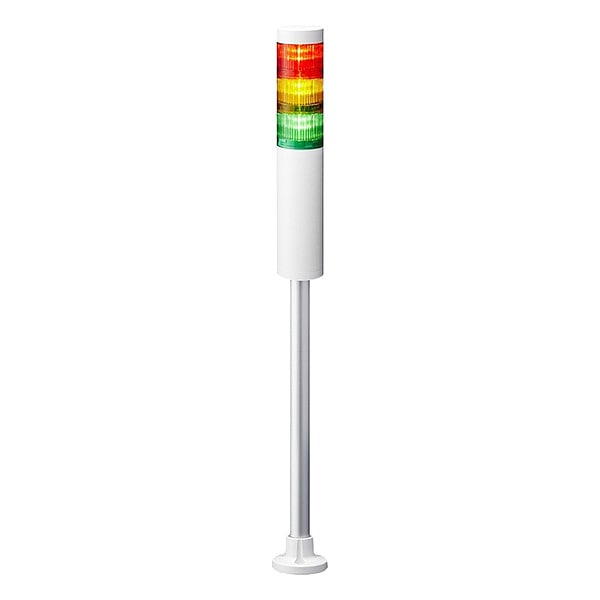

Patlite Tower Light Assemblies LR6-3M2PJNW-RYG - main

Tower Light Assemblies

  • Mfr # LR6-3M2PJNW-RYG

  • Zoro # G312481358

product price: $197.99
/ea
Free Shipping & Returns

Key Features

Standards
UL 508, CSA-C22.2 No. 14EMC Directive (EN 61000-6-4, EN 61000-6-2)RoHS Directive (EN IEC 63000)FCC Part 15 Subpart B Class AKC (KN 61000-6-4, KN 61000-6-2)Low Voltage Directive(IEC/EN60947-5-1,EN62471)
Voltage
100 to 240V AC
Overall Diameter
60 mm
NEMA Rating
NEMA 13, NEMA 4X
Wattage
1.3 W
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR6-3M2PJNW-RYG
Zoro #
G312481358
UPC #
-
Country of Origin
Indonesia

Dimensions

Overall Diameter
60 mm

Details

Item
Tower Light Assembly
Standards
UL 508, CSA-C22.2 No. 14EMC Directive (EN 61000-6-4, EN 61000-6-2)RoHS Directive (EN IEC 63000)FCC Part 15 Subpart B Class AKC (KN 61000-6-4, KN 61000-6-2)Low Voltage Directive(IEC/EN60947-5-1,EN62471)
Voltage
100 to 240V AC
NEMA Rating
NEMA 13, NEMA 4X
Wattage
1.3 W
Operating Current
Max. 0.135 A, Typ. 0.12A
Number of Light Tiers
3
Light Tier Color
Amber, Green, Red
Mounting Mechanism
Bracket
For Location
Indoor
Includes Sounder Tier
No Sounder Tier
Includes Mounting Hardware
Mounting Hardware Included
Connection Type
Wire Leads
Control Protocol
Direct Wire
Water Resistance
Water Resistant
Operating Temperature - Minimum
-20 Degrees C
Operating Temperature - Maximum
50 Degrees C
Housing Color
Off White
Light Intensity
2,000 mcd
IP Rating
IP65
Light Source
LED
Operating Voltage
100 to 240V AC

Description

NEMA Rating NEMA 13, NEMA 4X, Not Applicable Flashes per Minute, Standards UL 508, CSA-C22.2 No. 14EMC Directive (EN 61000-6-4, EN 61000-6-2)RoHS Directive (EN IEC 63000)FCC Part 15 Subpart B Class AKC (KN 61000-6-4, KN 61000-6-2)Low Voltage Directive(IEC/EN60947-5-1,EN62471), Tower Light Assembly
