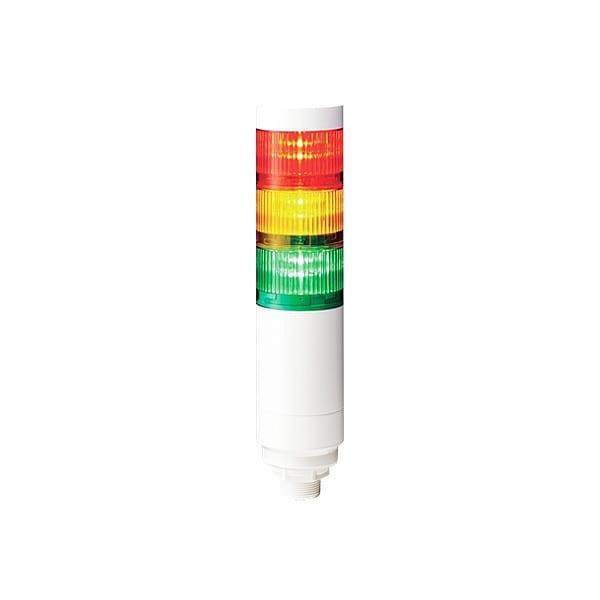

Tower Light Assembly, 24V DC, 60 mm Dia., 246 mm Height, LED, LR6+FB295 Series

  • Mfr # LR6-302WCNW-RYG+FB295

  • Zoro # G510993806


product price: $219.99
/ea
Free Shipping & Returns

Key Features

Standards
UL 508, CSA-C22.2 No. 14FCC Part 15 SubpartB Class AEN 61000-6-4, EN 61000-6-2, EN IEC 63000KS C 9610-6-4¿KS C 9610-6-2
Voltage
24V DC
Overall Diameter
60 mm
Housing Material
Polycarbonate
Lighting Technology
LED
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR6-302WCNW-RYG+FB295
Zoro #
G510993806
UPC #
-
Country of Origin
Indonesia

Dimensions

Overall Diameter
60 mm
Overall Height
246 mm
Diameter
60 mm

Details

Item
Tower Light Assembly
Standards
UL 508, CSA-C22.2 No. 14FCC Part 15 SubpartB Class AEN 61000-6-4, EN 61000-6-2, EN IEC 63000KS C 9610-6-4¿KS C 9610-6-2
Voltage
24V DC
Housing Material
Polycarbonate
Lighting Technology
LED
Current Drawn
45mA
Includes
M12 Connector
Lens Material
Polycarbonate
Tower Light Series
LR6+FB295
Tower Light Mounting Style
Direct
Number of Lights
3
Operating Temp.
-20 Degrees to 50 Degrees C
Light Modes
Steady
Tower Light Color
Amber, Green, Red
IP Rating
IP67, IP69K
Number of Light Tiers
3
Operating Current
Max. 0.135 A, Typ. 0.12A
Housing Color
Off-White
Wattage
1.3 W
Control Protocol
Direct Wire
Light Operating Mode
Steady
Includes Sounder Tier
No Sounder Tier
Includes Mounting Hardware
Mounting Hardware Included
Light Source
LED
Light Tier Color
Amber, Green, Red
Operating Temperature - Maximum
50 Degrees C
For Location
Indoor
Operating Temperature - Minimum
-20 Degrees C
Connection Type
Pin Connector
Operating Voltage
24V DC

Description

Tower Light Mounting Style Direct, Number of Lights 3, Tower Light Color Amber, Green, Red, Light Modes Steady, Sound Modes Not Applicable, Lighting Technology LED, Sounder Included Not Applicable, Diameter 60 mm, Overall Height 246 mm, Voltage 24V DC, NEMA Rating Not Applicable, Tower Light Series LR6+FB295, Not Applicable Flashes per Minute, Housing Material Polycarbonate, Lens Material Polycarbonate, Sound Level Not Applicable, Operating Temp. -20 Degrees to 50 Degrees C
