  5. High-Velocity Industrial Fan, 24" W

This item is Discontinued.

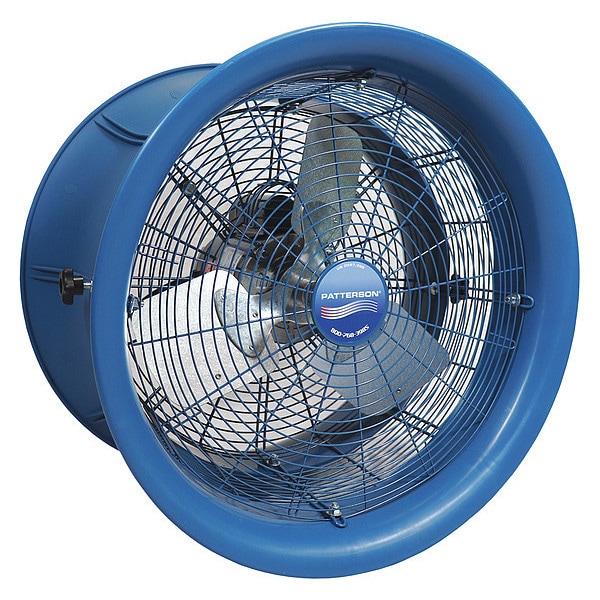

Patterson High-Velocity Industrial Fan, 24" W HIP18C-CS

High-Velocity Industrial Fan, 24" W (Discontinued)

  • Mfr # HIP18C-CS
  • Zoro # G700422369
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HIP18C-CS
Zoro #
G700422369
UPC #
-
Country of Origin
United States

Dimensions

Height
24 in
Depth
16 in
Width
24 in
Shaft Dia.
5/8 in
Blade Diameter
18 in
Length
24 in

Details

Voltage
277V AC
Color
Blue
Item
High-Velocity Industrial Fan
RPM
1725
Standards
OSHA
Air Flow
3,800 cfm
Motor HP
1/2 hp
Amps
1.85
Sound Level
65.1 @ 20Ft.
Oscillation
Non-Oscillating
Number of Blades
3
Housing Finish - Fans
Polypropylene
Wheeled Base
Stationary
Motor Design
Permanent Split Capacitor
Includes
Eye Hook For Ceiling Mounting
Phase
1
Assembly Required
Yes
Motor Type
Permanent Split Capacitor
Wire Guard Finish
Blue Powder Coated
Watts
512.5
Air Velocity @ 40 Ft.
350 fpm
Battery Operated - Fans
No
Fan Accessory Material
Polypropylene
Guard Material
Steel
Environmental Applications
Industrial
Hz
60 Hz
Fan Blade Finish
No Decorative Finish
Air Velocity @ 20 Ft.
475 fpm
Number of Speeds
1
Fan Housing Material
Polypropylene
Blade Material
Galvalume
Motor Insulation
Class B
Drive Type
Direct Drive
Fan Accessory Finish
Polypropylene
Motor Enclosure
Totally Enclosed Air Over
Fan Blade Color
Silver
Max. Ambient Temp.
105 Degrees F
Thermal Protection
Automatic Reset
Air Velocity @ 80 Ft.
175 fpm
Number of Conductors
0
Fan Power Source
Hardwired
NEMA Plug Configuration
Hardwired
Bearing Type
Ball
Air Velocity @ 60 Ft.
250 fpm

Description

High-Velocity Industrial Fan,24" W
