  9. High-Velocity Industrial Fan, Ceiling, Floor, Wall Mount, 34" Blade Dia, 230/460VAC, 17,000 CFM

This item is Discontinued.

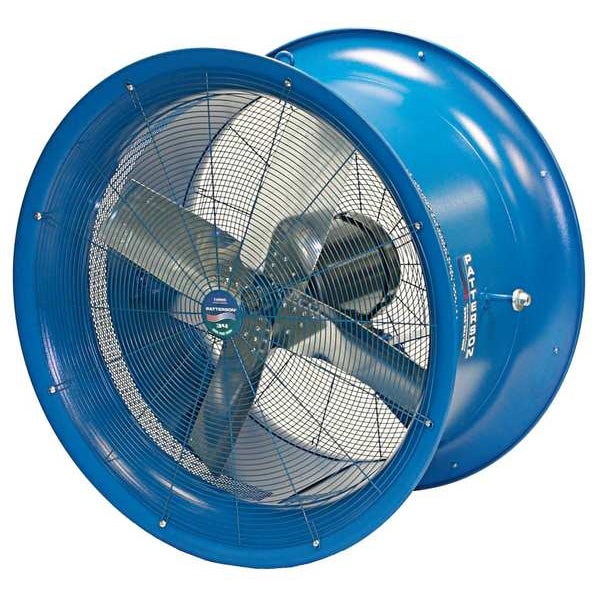

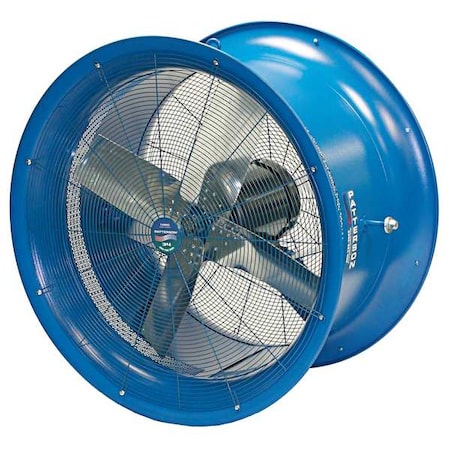

Patterson High-Velocity Industrial Fan, Ceiling, Floor, Wall Mount, 34" Blade Dia, 230/460VAC, 17,000 CFM H34B-CS

High-Velocity Industrial Fan, Ceiling, Floor, Wall Mount, 34" Blade Dia, 230/460VAC, 17,000 CFM (Discontinued)

  • Mfr # H34B-CS
  • Zoro # G6182267
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H34B-CS
Zoro #
G6182267
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
34"
Blade Dia.
34"
Max. Depth
25-1/2"
Outside Dia.
43-1/2"
Shaft Dia.
1-3/8"
Width
43-1/2"
Height
43-1/2"
Depth
25 1/2 in

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
230/460VAC
Phase
3
Motor HP
3
Air Flow
17,000 CFM
Drive Type
Direct
Item
High-Velocity Industrial Fan
Watts
2250
Speeds
1
Air Velocity (FPM) @ 40 Ft
700
Standards
OSHA compliant wire guards
Fan RPM
1165
Guard Material
Steel
Assembled
Yes
Air Velocity (FPM) @ 60 Ft.
600
Motor Type
3 Phase
Air Velocity (FPM) @ 80 Ft.
500
Hz
60
Bearing Type
Ball
Motor Insulation
CLASS F
Air Velocity @ 20 Ft.
1000
Air Velocity (FPM) @ 20 Ft.
1000
Number of Blades
4
Housing Material
Steel
Motor RPM
1165
Application
Spot Cooling and People Cooling
Air Velocity @ 60 Ft.
600
Air Velocity @ 80 Ft.
500
Wire Guard Finish
Blue Powder Coated
Requires
Hard Wiring and Mounting Devices For Specific Applications, use Either 6ALG3, 6ALH0, 6ALG5, 6ALG6 or 6ALG7
Air Velocity @ 40 Ft.
700
Fan Mounting Location
Ceiling, Floor, Wall
Thermal Protection
None
Motor Enclosure
Totally Enclosed Air Over
Operating Amps
9.9-9.2/4.6
CFM High
17,000
Max. Ambient Temp.
105 Degrees F
Oscillating / Non-Oscillating
Non-Oscillating
Environmental Applications
Industrial
Frame Material
Steel
Assembly Required
No
Amps
9.9-9.2/4.6
RPM
1165
Wheeled Base
Stationary
Fan Housing Material
Steel
Material
Steel
Oscillating
No
Product Type
High-Velocity Industrial Fan

Description

Hgh Vlcty Indstrl Fan,34" Blde Dia.,1Spd
