Shop PBC LINEAR

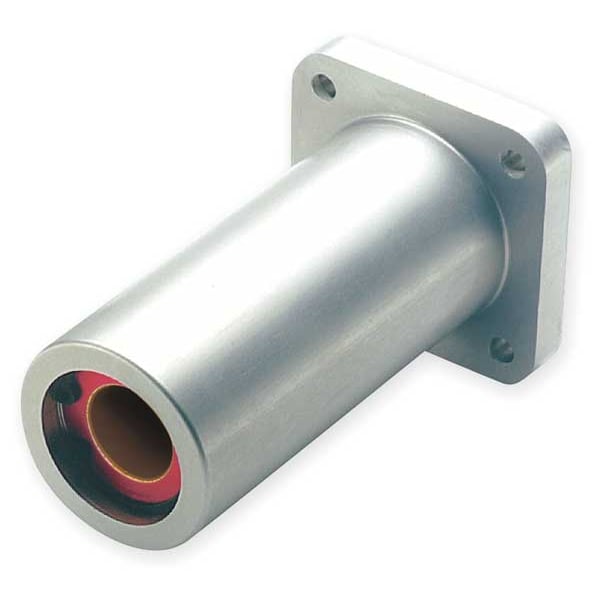

Flange Bearing, 0.500 In Bore, 3.375 In L

  • Mfr # DFP08

  • Zoro # G2680824

product price:
$
202.99
/ea
Free Shipping & Returns

Key Features

Bore Dia. (In.)
0.5 in
Material
Aluminum
Overall Height (In.)
1 5/8 in
Static Load Capacity (N)
3,900 lbf
Bearing Type
Plain
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DFP08
Zoro #
G2680824
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia. (In.)
0.5 in
Overall Height (In.)
1 5/8 in
Dimension A
0.5 in
Dimension C
1.25 in
Dimension E
0.25 in
Dimension L (In.)
3.375 in
Dimension F
#8
Bolt Size
#8
Overall Width (In.)
1.63 in
Dimension B
1.63 in
Mounting Hole Dia. (mm)
0.1875 in
Dimension G
0.187 in
Mounting Hole Dia. (In.)
0.1875 in
Dimension d
1.25 in
Body Width (In.)
1.25 in
Overall Length (In.)
3.375 in
Dimension D
1.25 in
Flange Thickness (In.)
0.25 in
Inside Dia.
1/2 in
Flange Width
1.63 in
Flange Thickness
0.25 in
Length (In.)
3 3/8 in
Dimension a
0.5 in
Inside Diameter
1/2 in
Overall Height
1 5/8 in
Overall Length
3 3/8 in
Outside Diameter
1 1/4 in
Body Width
1.25 in
Mounting Hole Diameter
3/16 in
Wire Rope Length
3 3/8 in
Length
3 3/8 in

Details

Item
Mounted Linear Bearing
Material
Aluminum
Static Load Capacity (N)
3,900 lbf
Bearing Type
Plain
Static Load Capacity (Lb.)
3,900 lb
Lubrication
Self Lubricating
Accelerated Speed
14 fps
Locking Type
Retaining Ring
Steady State Speed
5 fps
Dynamic Load Capacity (Lb.)
1,950 lb
Dynamic Load Capacity (N)
1,950 lbf
Temp. Range (F)
0 - 400
Retaining Ring
External
Self-Alignment
Self-Aligning
Liner
Frelon(TM) Gold
Finish
Anodized
Type
Square Flanged
Housing Style
Twin
System of Measurement
Inch
Maximum Operating Temperature
400 Degrees F
Minimum Operating Temperature
-400 Degrees F
Series
Simplicity
Liner Material
Frelon (TM) Gold
Static Load Capacity
3,900 lbf
Dynamic Load Capacity
1,950 lbf

Description

Mounted Linear Bearing, Inside Diameter 1/2 in, Outside Diameter 1 1/4 in, Flange Width 1.63 in, Overall Length 3 3/8 in, Dynamic Load Capacity 1,950 lbf, Flange Thickness 0.25 in, Material Aluminum, Lubrication Self Lubricating, Series Simplicity, Static Load Capacity 3,900 lbf, Steady State Speed 5 fps, Housing Style Twin, System of Measurement Inch, Self-Alignment Self-Aligning, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F
