Pbc Linear

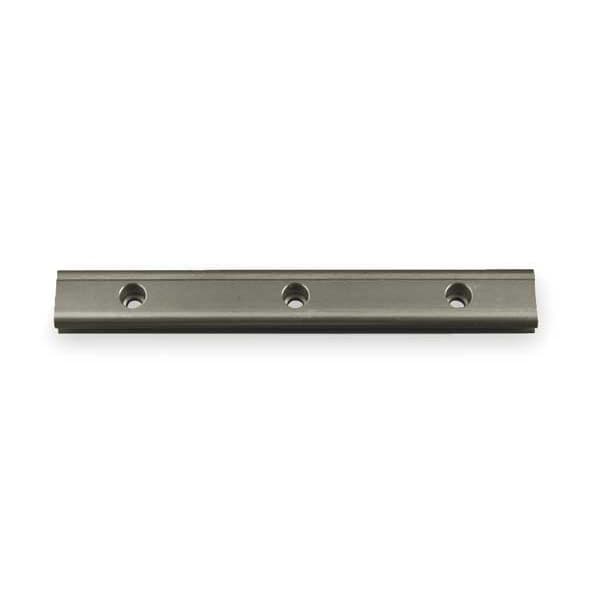

Linear Guide, 220mm L, 20 mm W, 13.40 mm H
- Zoro #: G0323032
- Mfr #: MR20R-0220
Tap to zoom
Hover or click to zoom
Help us improve our
Orders over $75 ship free.
(Sign in or create an account for free shipping on orders over $50)
Total: $39.55
Pbc Linear #MR20R-0220 Specifications
- Zoro #: G0323032
- Mfr #: MR20R-0220
- Item: Linear Guide Rail
- Type: Mini-Rail
- Overall Length: 220 mm
- Overall Width: 20 mm
- Overall Height: 13.4 mm
- Rail Material: Aluminum
- Screw Type: Low Profile Socket Head Cap
- Includes: -
- Raceway: RC60 Steel Shaft
- Temp. Range (F): 0 - 248
- For Use With: Redi-Rail Sliders
- Dimension L1: -
- Rail Finish: Aluminum w/Steel Insert
- Number of Rail Holes: 4
- Agency Compliance: -
- Dimension M1: -
- Mounting Hole Center to Center: 60 mm
- Dimension F: -
- Dimension G2: -
- Dimension J1: -
- Dimension F2: -
- Mounting Hole from Shaft End: 20 mm
- Mounting Hole Size: 6.0mm
- Dimension X: -
- Dimension S2: -
- Dimension G: -
- Dimension O: -
- Dimension L: -
- Dimension S3: -
- Dimension N: -
- Dimension S1: -
- Dimension B: -
- Dimension L2: -
- Dimension L3: -
- Dimension G1: -
- Temp. Range: 0 - 248F
- Dimension P: -
- Dimension F1: -
- Dimension B1: -
- Size: -
- Thread Size: -
- Dimension F3: -
- Dimension B2: -
- Dimension Y1/Y2: -
- Dimension J: -
- Country of Origin (subject to change): United States
Description
Linear Guide Rail, Mini-Rail, Overall Length 220 mm, Overall Width 20 mm, Overall Height 13.40 mm, Number of Rail Holes 4, Mounting Hole from Shaft End 20mm, Mounting Hole Center to Center 60mm, Mounting Hole Size 6.00mm, Screw Type Low Profile Socket Head Cap, Temp Range 0 - 248 F, Aluminum Rail Material, Aluminum w/Steel Insert Rail Finish, RC60 Steel Shaft Raceway, For Use With Redi-Rail Sliders
