  11. Pillow Block, 2.000 In Bore, 4.750 In L

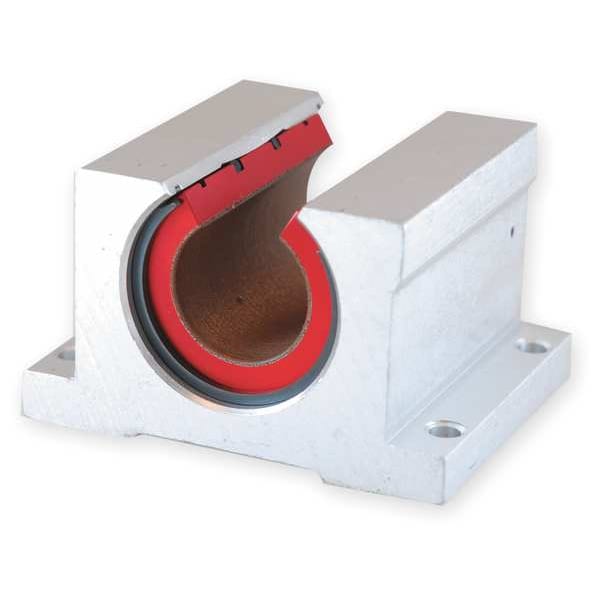

Pbc Linear Pillow Block, 2.000 In Bore, 4.750 In L PN32 - main

Pillow Block, 2.000 In Bore, 4.750 In L

  • Mfr # PN32

  • Zoro # G3436544

product price: $373.99
/ea
Free Shipping & Returns

Key Features

Bore Dia. (In.)
2 in
Material
Aluminum Alloy
Type
Open Pillow Block
Dimension H1
3/8 in
Dimension O
0.103 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PN32
Zoro #
G3436544
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia. (In.)
2 in
Dimension H1
3/8 in
Dimension O
0.103 in
Dimension G
4.5 in
Overall Width (In.)
6 in
Overall Height (In.)
3.625 in
Dimension K
3.625 in
Dimension J
0.625 in
Dimension P
3.182 in
Mounting Hole Dia. (In.)
0.4063 in
Body Width (In.)
4.5 in
Mounting Hole Dia. (mm)
0.40625 in
Dimension R
1 in
Dimension A
2.125 in
Overall Length (In.)
4.75 in
Dimension F
3.25 in
Flange Thickness (In.)
0.625 in
Dimension E
5.25 in
Slot Width (In.)
1 in
Dimension S
4.688 in
Dimension H
0.4063 in
Dimension B
6 in
Dimension C
4.75 in
Bolt Size
3/8 in
Dimension M (In.)
4 in
Length (In.)
4 3/4 in
Flange Thickness
0.625 in
Inside Dia.
2 in
Flange Width
6 in
Dimension a
2.125 in
Overall Length
4 3/4 in
Overall Height
3 5/8 in
Slot Width
1 in
Mounting Hole Diameter
0.406 in
Body Width
4.5 in
Inside Diameter
2 in

Details

Item
Mounted Linear Bearing
Material
Aluminum Alloy
Type
Open Pillow Block
Mounting Surface to Shaft Center (In.)
2.125 in
Accelerated Speed
14 Feet/Second
Slot Angle (Degrees)
60 Degrees
Locking Type
Retaining Ring, Roll Pin
Dynamic Load Capacity (N)
25,050 lbf
Steady State Speed
5 fps
Bearing Type
Plain
Retaining Ring
External
Lubrication
Self Lubricating
Liner
Frelon(TM) Gold
Static Load Capacity (N)
25,050 lbf
Static Load Capacity (Lb.)
25,050 lb
Dynamic Load Capacity (Lb.)
25,050 lb
Self-Alignment
Self-Aligning
Temp. Range (F)
0 - 400
System of Measurement
Inch
Housing Style
Single
Series
PN
Minimum Operating Temperature
-400 Degrees F
Maximum Operating Temperature
400 Degrees F
Static Load Capacity
25,050 lbf
Mounting Surface to Shaft Center
2.125 in
Dynamic Load Capacity
25,050 lbf
Slot Angle
60 Degrees
Liner Material
Frelon(TM) Gold
Includes Seals
Seals Not Included
Pillow Block Type
Open

Description

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 2 in, Overall Length 4 3/4 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 25,050 lbf, Dynamic Load Capacity 25,050 lbf, Steady State Speed 5 fps, Series PN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Single, Pillow Block Type Open, Locking Type Retaining Ring, Roll Pin, Bolt Size 3/8 in
