Shop PBC LINEAR

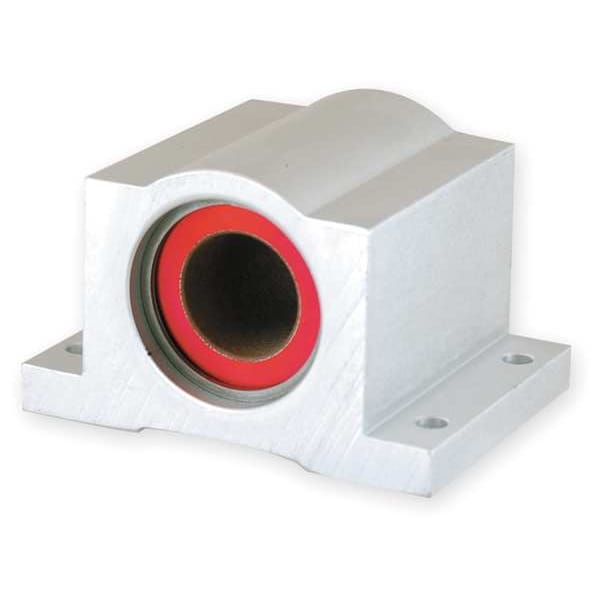

Pillow Block, 2.000 In Bore, 5.000 In L

  • Mfr # P32
  • Zoro # G0982922
product price:
$
299.99
/ea
Free Shipping & Returns

Key Features

Bore Dia. (In.)
2 in
Material
Aluminum Alloy
Body Width (In.)
4.5 in
Dimension P
3.182 in
Dimension G
4.5 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P32
Zoro #
G0982922
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia. (In.)
2 in
Body Width (In.)
4.5 in
Dimension P
3.182 in
Dimension G
4.5 in
Dimension F
3.25 in
Bolt Size
3/8 in
Dimension C
5 in
Dimension B
6 in
Overall Width (In.)
6 in
Overall Height (In.)
4 1/16 in
Mounting Hole Dia. (In.)
0.4063 in
Dimension H1
3/8 in
Dimension A
2.125 in
Flange Thickness (In.)
0.625 in
Dimension M (In.)
4 in
Mounting Hole Dia. (mm)
0.40625 in
Dimension d
4.063 in
Dimension K
3.625 in
Dimension J
0.625 in
Dimension H
0.4063 in
Dimension O
0.103 in
Overall Length (In.)
5 in
Dimension E
5.25 in
Dimension D
4.063 in
Dimension a
2.125 in
Length (In.)
5 in
Flange Thickness
0.625 in
Inside Dia.
2 in
Flange Width
6 in
Overall Length
5 in
Overall Height
4 1/8 in
Inside Diameter
2 in
Mounting Hole Diameter
0.406 in
Body Width
4.5 in
Wire Rope Length
5 in
Length
5 in

Details

Item
Mounted Linear Bearing
Material
Aluminum Alloy
Dynamic Load Capacity (N)
25,050 lbf
Self-Alignment
Self-Aligning
Mounting Surface to Shaft Center (In.)
2.125 in
Locking Type
Retaining Ring
Liner
Frelon(TM) Gold
Static Load Capacity (Lb.)
25,050 lb
Accelerated Speed
14 Feet/Second
Type
Closed Pillow Block
Temp. Range (F)
0 Degrees to 400 Degrees F
Lubrication
Self Lubricating
Retaining Ring
External
Dynamic Load Capacity (Lb.)
25,050 lb
Static Load Capacity (N)
25,050 lbf
Steady State Speed
5 fps
Bearing Type
Plain
System of Measurement
Inch
Series
Simplicity
Housing Style
Single
Maximum Operating Temperature
400 Degrees F
Minimum Operating Temperature
-400 Degrees F
Mounting Surface to Shaft Center
2.125 in
Dynamic Load Capacity
25,050 lbf
Static Load Capacity
25,050 lbf
Liner Material
Frelon(TM) Gold
Pillow Block Type
Closed
Shell Material
Aluminum Alloy

Description

Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 2 in, Overall Length 5 in, Self-Alignment Self-Aligning, Liner Material Frelon(TM) Gold, Material Aluminum Alloy, Static Load Capacity 25,050 lbf, Dynamic Load Capacity 25,050 lbf, Steady State Speed 5 fps, Series Simplicity, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Housing Style Single, Pillow Block Type Closed, Locking Type Retaining Ring, Bolt Size 3/8 in
