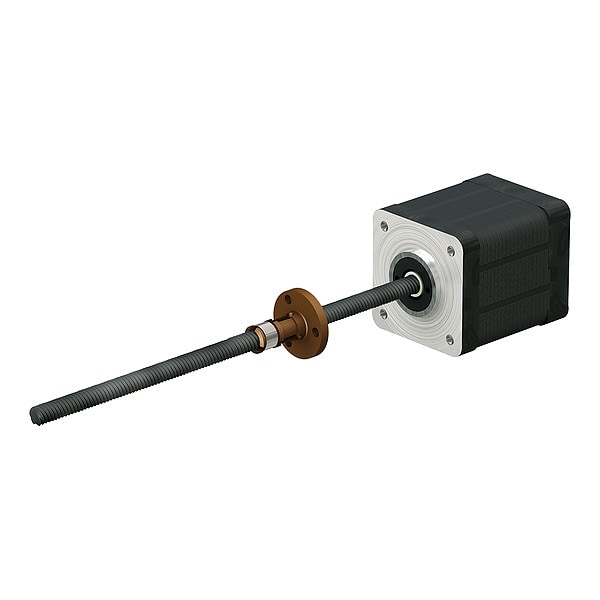

Pbc Linear Precion Lead Screw, 0.003 in/ft Lead LSR0601T-0100-RCF-080-NNN-N - main

Precion Lead Screw, 0.003 in/ft Lead

  • Mfr # LSR0601T-0100-RCF-080-NNN-N

  • Zoro # G309788538

product price: $307.99
/ea
Free Shipping & Returns

Key Features

Left End Components
None
Nut Material
Stainless Steel
Nut Flange Thickness
4.8 mm
Screw Material
Stainless Steel
Screw Diameter
6 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LSR0601T-0100-RCF-080-NNN-N
Zoro #
G309788538
UPC #
-
Country of Origin
United States

Dimensions

Nut Flange Thickness
4.8 mm
Screw Diameter
6 mm
Nut Length
22.2 mm
Motor Length
29.5 mm
Nut Flange Diameter
25.4 mm
Nut Bolt Circle Diameter
19.1 mm
Motor Size
NEMA 8
Screw Length
100 mm
Nut Diameter
10.2 mm
Nut Mounting Hole Diameter
3.6 mm
Lead Length
1 mm

Details

Item
Precision Lead Screw
Left End Components
None
Nut Material
Stainless Steel
Screw Material
Stainless Steel
Coating Material
PTFE
Nut Type
Anti-Backlash
Lead Accuracy
0.003 in/ft
Percent Efficiency
39%
Screw Type
Lead Screw
Nut Shape
Round
Insulation Resistance
100 Mohm
Nut Drag Torque
0.0134 to 0.0164 Nm
Travel per Step
0.005 in
Motor Type
Stepper Motor
Step Accuracy
+/-5%
Insulation Class
B
Rated Current
0.4 A
Thread Direction
Right
Winding Resistance
13.9 ohm
Assembly Type
Lead Screw Assembly
Motor Maximum Operating Temperature
50 Degrees C
Motor IP Rating
IP40
Steps per Revolution
200
Electrical Connection
Plug-In Connector
Phase
2
Right End Components
None
Screw Material Grade
300
Motor Minimum Operating Temperature
-20 Degrees C
Frame
NEMA 8
Nut Dynamic Load Capacity
302 N

Description

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 8, Nut Shape Round, Insulation Class B, Screw Diameter 6 mm, Lead Length 1 mm, Screw Length 100 mm, Nut Length 22.2 mm, Nut Flange Diameter 25.4 mm, Motor Length 29.5 mm, Rated Current 0.4 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C
