  11. Standard Linear Bearing, 1-1/2 In.

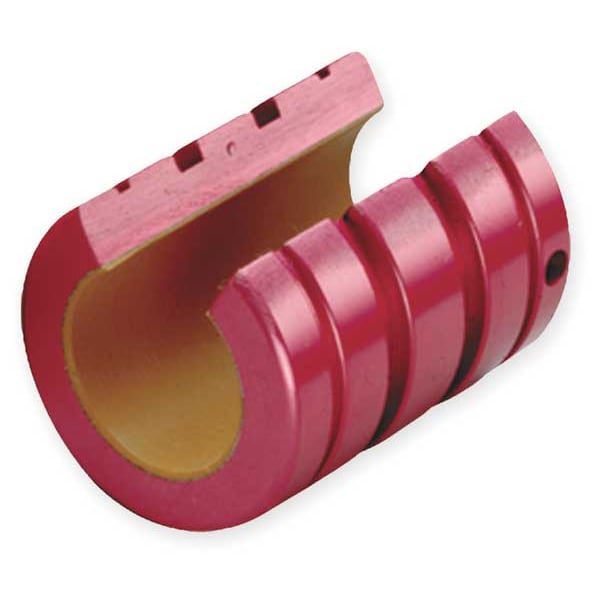

Pbc Linear Standard Linear Bearing, 1-1/2 In. FLN24 - main

Standard Linear Bearing, 1-1/2 In.

  • Mfr # FLN24

  • Zoro # G0331371

product price: $116.99
/ea
Free Shipping & Returns

Key Features

  • Type
    Open
  • Outside Dia.
    2 3/8 in
  • Material
    Aluminum
  • Inside Dia. Tolerance
    +/-0.001
  • Dimension G
    3/16
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR # FLN24 Zoro # G0331371
UPC # - Country of Origin United States
MFR # FLN24
Zoro # G0331371
UPC # -
Country of Origin United States

Dimensions

Outside Dia. 2 3/8 in Inside Dia. Tolerance +/-0.001
Dimension G 3/16 Dimension F 0.201 in
Dimension C 3 in Dimension E 60 in
Outside Dia. Tolerance +/-0.001 Dimension B 2.375 in
Length 3 in Inside Dia. 1 1/2 in
Slot Width (In.) 0.750 Inside Diameter Tolerance +0.0059/+0.0044 in
Slot Width 0.75 in Outside Diameter Tolerance +0.005/+0.0008 in
Outside Diameter 2 3/8 in Overall Length 3 in
Inside Diameter 1 1/2 in
Outside Dia. 2 3/8 in
Inside Dia. Tolerance +/-0.001
Dimension G 3/16
Dimension F 0.201 in
Dimension C 3 in
Dimension E 60 in
Outside Dia. Tolerance +/-0.001
Dimension B 2.375 in
Length 3 in
Inside Dia. 1 1/2 in
Slot Width (In.) 0.750
Inside Diameter Tolerance +0.0059/+0.0044 in
Slot Width 0.75 in
Outside Diameter Tolerance +0.005/+0.0008 in
Outside Diameter 2 3/8 in
Overall Length 3 in
Inside Diameter 1 1/2 in

Description

Standard Linear Bearing, System of Measurement Inch, Running Clearance Class Precision, Inside Diameter 1 1/2 in, Outside Diameter 2 3/8 in, Overall Length 3 in, Static Load Capacity 14,100 lbf, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FLN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Open
