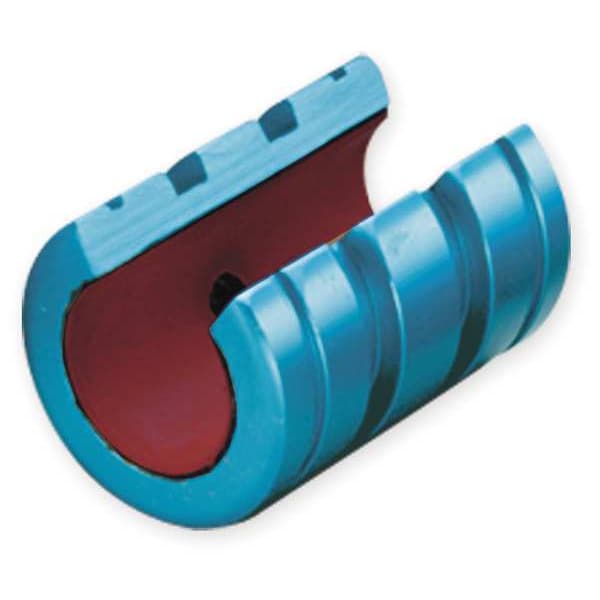

Standard Linear Bearing, 20mm
Mfr # FMN20
Zoro # G1602885
product price: $46.69
/eaKey Features
Type
Open
Outside Dia.
32 mm
Material
Aluminum Alloy
Inside Dia. Tolerance
+/-0.001
Dimension C
45 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
FMN20
Zoro #
G1602885
UPC #
-
Country of Origin
United States
Dimensions
Outside Dia.
32 mm
Inside Dia. Tolerance
+/-0.001
Dimension C
45 mm
Dimension B
32 mm
Dimension E
60 in
Outside Dia. Tolerance
+/-0.001
Inside Dia.
20 mm
Length
45 mm
Inside Diameter
20 mm
Overall Length
45 mm
Outside Diameter Tolerance
+0.003/+0.008 mm
Slot Width
10.8 mm
Inside Diameter Tolerance
+0.009/+0.096 mm
Outside Diameter
31.99 mm
Description
Standard Linear Bearing, System of Measurement Metric, Running Clearance Class Precision, Inside Diameter 20 mm, Outside Diameter 31.99 mm, Overall Length 45 mm, Static Load Capacity 18,541 N, Material Aluminum Alloy, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FMN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Bearing Type Open, Inside Diameter Tolerance +0.009/+0.096 mm
