Cable locator, 16-4921 ft TDR with 86 cable types, 100-measurement memory and USB-C
Mfr # PCE-CLT 100
Zoro # G622432576
product price:Â $453.99
/ea
Free Shipping & Returns
Key Features
Length
6.50 in
Measuring Principle
Time-delay method (TDR)
For Use With
Ideal for use in trade, electrical installation and maintenance. The measuring range extends from 5 to 1500 (16.4 to 4,921.3 ft) meters, and the device reliably detects short circuits and breaks in the cable.
Number Of Cable Types In Database
86
Cable cross-section from to to
0.25 to 16 mm²
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-CLT 100
- Zoro #
- G622432576
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Length
- 6.50 in
- Width
- 3.35 in
Details
- Measuring Principle
- Time-delay method (TDR)
- For Use With
- Ideal for use in trade, electrical installation and maintenance. The measuring range extends from 5 to 1500 (16.4 to 4,921.3 ft) meters, and the device reliably detects short circuits and breaks in the cable.
- Number Of Cable Types In Database
- 86
- Cable cross-section from to to
- 0.25 to 16 mm²
- Includes
- 1 x PCE-CLT 100 Cable Detector, 1 x Set of test leads 0.5 m / 1.6 ft (red/black), 1 x Set of crocodile clips (red/black), 1 x USB-C cable, 1 x Quick Start Guide, 1 x Service bag
- Connections
- BNC, 4 mm laboratory socket
- Protection Class
- IP50
- Units
- m, ft
- Accuracy
- ± (1% v. Mw.+ 0.2 m)
- Types Of Cables
- Shortening Factor
- 0 to 0.99
- Measurement Range
- 5 to 1500 m / 16.4 to 4,921.3 ft
Description

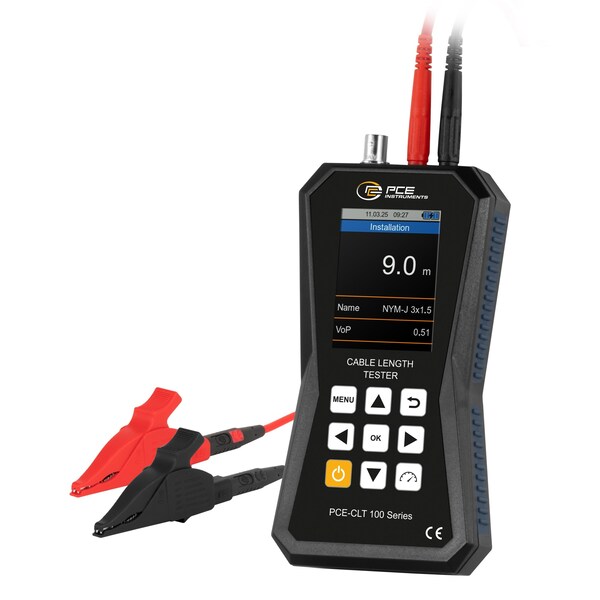

The Cable Locator is a versatile, reliable and precise measuring device for determining cable lengths using the proven transit time method. With this professional Cable Locator, cables can be reliably measured without having to unwind them - ideal for use in trade, electrical installation and maintenance. The measuring range extends from 5 to 1500 (16.4 ... 4,921.3 ft) meters, and the device reliably detects short circuits and breaks in the cable. Thanks to the integrated cable database with 86 different cable types and the option to teach in your own cables and set customized shortening factors, the Cable Locator is particularly flexible to use. Connection is convenient via 4 mm laboratory sockets with the crocodile clips supplied or via a BNC socket for coaxial cables. Cable cross-sections from 0.25 mm sq. to 16 mm sq. are supported, making the Cable Locator suitable for a wide range of applications. A 2.8 inch display provides a clear presentation of all measurement results, while the multilingual menu enables simple and user-friendly operation. The measurement results can be stored internally and called up again on the device. With a battery life of up to 20 hours and compact dimensions, the Cable Locator is optimized for mobile use and is ideal for daily use on construction sites or in workshops. The Cable Locator is therefore the perfect solution for anyone looking for a reliable, precise and handy measuring device for determining the length of electrical cables and diagnosing faults.
