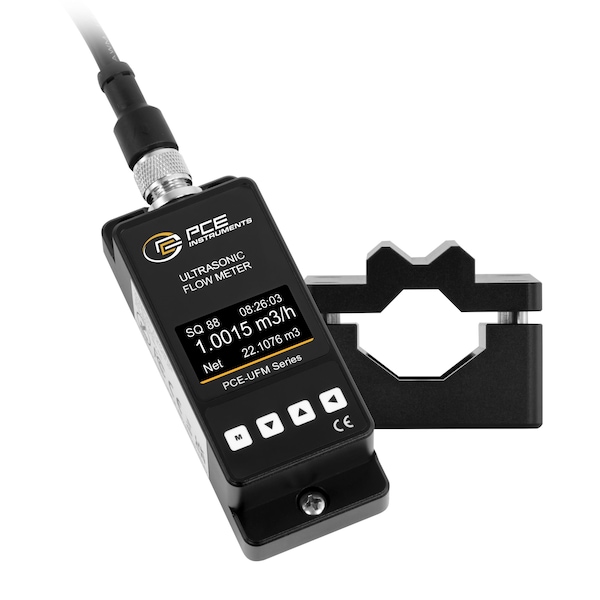

Clamp-on ultrasonic flow meter, 0.1-5 m/s for DN15 pipes with 4-20 mA and RS-485
Mfr # PCE-UFM 15
Zoro # G022432343
product price:Â $1,394.99
/ea
Free Shipping & Returns
Key Features
Measuring Medium
Water, Seawater, Oil, User-Defined (Manual Input Of Sound Velocity For The Medium)
Data Interface
RS485
Application
To measure flow rates from ±01 m/s to ±5 m/s using ultrasonic technology
Velocity M/S Accuracy
0.02
Length
4.3 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-UFM 15
- Zoro #
- G022432343
- UPC #
- -
- Country of Origin
- China
Dimensions
- Length
- 4.3 in
- Width
- 2.3 in
- For Pipe Size
- DN15
Details
- Measuring Medium
- Water, Seawater, Oil, User-Defined (Manual Input Of Sound Velocity For The Medium)
- Data Interface
- RS485
- Application
- To measure flow rates from ±01 m/s to ±5 m/s using ultrasonic technology
- Velocity M/S Accuracy
- 0.02
- Voltage
- 9-36V DC
- Protection Class
- IP54
- Velocity M/S Measurement Range
- 0.1-5 m/s
- Analog Output
- 4 to 20 mA
- Includes
- 1 x 2 m / 6.6 ft Connection Cable, 4 x Coupling Pads, 1 x User Manual
- Device Weight With Accessories
- 652 g / 1.4 lb
- Velocity M/S Resolution
- 0.001 m/s
- For Use With
- To measure flow rates from ±01 m/s to ±5 m/s using ultrasonic technology
Description
Our ultrasonic flow test instrument offers the capability to measure flow rates from +/-0.1 m/s to +/-5 m/s using ultrasonic technology. This flow meter is suitable for small pipes with a diameter of DN15 / 1/2" / 3/8" and is compatible with various pipe materials such as steel, copper, aluminum, and plastics. Due to its compact design, it can be quickly and easily mounted on the pipe. The flow meter's display provides information on flow velocity, date, and time. In another view, it also displays the volume flow rate for the day, month, and year. Additionally, the flow meter can output the measurement value as an analog signal (4 ... 20mA) and digitally via an RS485 interface. With a power supply range of 9 ... 36 V DC, the ultrasonic flow test instrument is highly versatile and can be used in a wide range of applications. It comes with a 2m connection cable and coupling pads for improved signal transmission. This flow meter can be used in various applications, including heating systems, cooling water systems, and industrial processes where flow monitoring and control are necessary.
