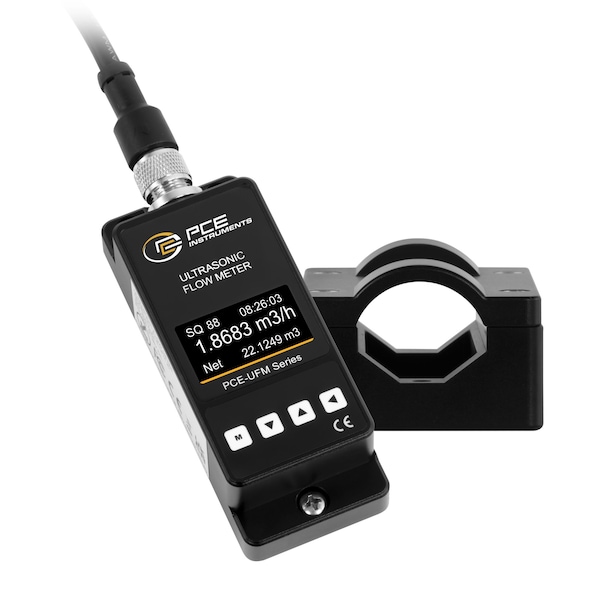

Clamp-on ultrasonic flow meter, 0.1-5 m/s for DN20 pipes with 4-20 mA and RS-485
Mfr # PCE-UFM 20
Zoro # G322432289
product price:Â $1,394.99
/ea
Free Shipping & Returns
Key Features
Measuring Medium
Water, Seawater, Oil, User-Defined (Manual Input Of Sound Velocity For The Medium)
Device Weight With Accessories
652 g / 1.4 lb
For Pipe Size
DN20
Protection Class
IP54
Velocity M/S Accuracy
0.02
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-UFM 20
- Zoro #
- G322432289
- UPC #
- -
- Country of Origin
- China
Dimensions
- For Pipe Size
- DN20
- Width
- 2.3 in
- Length
- 4.3 in
Details
- Measuring Medium
- Water, Seawater, Oil, User-Defined (Manual Input Of Sound Velocity For The Medium)
- Device Weight With Accessories
- 652 g / 1.4 lb
- Protection Class
- IP54
- Velocity M/S Accuracy
- 0.02
- Includes
- 1 x 2 m / 6.6 ft Connection Cable, 4 x Coupling Pads, 1 x User Manual
- Velocity M/S Resolution
- 0.001 m/s
- Voltage
- 9-36V DC
- Application
- To measure flow rates from ±01 m/s to ±5 m/s using ultrasonic technology
- Velocity M/S Measurement Range
- 0.1-5 m/s
- Analog Output
- 4 to 20 mA
- Data Interface
- RS485
- For Use With
- To measure flow rates from ±01 m/s to ±5 m/s using ultrasonic technology
Description
Our ultrasonic flow test instrument offers the capability to measure flow rates from +/-0.1 m/s to +/-5 m/s using ultrasonic technology. This flow meter is suitable for small pipes with a diameter of DN20 / 3/4" and is compatible with various pipe materials such as steel, copper, aluminum, and plastics. Due to its compact design, it can be quickly and easily mounted on the pipe. The flow meter's display provides information on flow velocity, date, and time. In another view, it also displays the volume flow rate for the day, month, and year. Additionally, the flow meter can output the measurement value as an analog signal (4 ... 20mA) and digitally via an RS485 interface. With a power supply range of 9 ... 36 V DC, the ultrasonic flow test instrument is highly versatile and can be used in a wide range of applications. It comes with a 2m connection cable and coupling pads for improved signal transmission. This flow meter can be used in various applications, including heating systems, cooling water systems, and industrial processes where flow monitoring and control are necessary.
