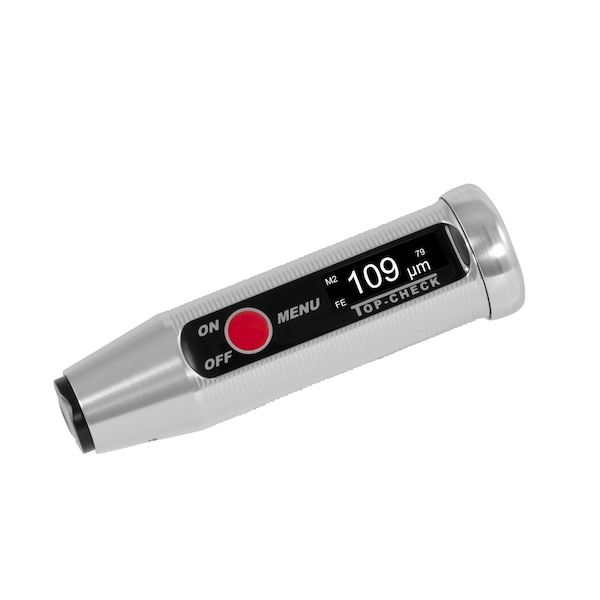

Coating thickness meter, 2-5000 mcgm Fe/NFe with swivel dual probe and 4000-value memory
Mfr # LM-TC-DUAL
Zoro # G022432626
product price:Â $1,334.99
/ea
Free Shipping & Returns
Key Features
Designation
TOP CHECK Dual
Length
3.74 in
Layer Thickness
2 to 5000 µm
Measuring Functions
Quantity, MAX, MIN, Average value, Standard deviation
Min. Measuring Surface
Ø 8 mm
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
LM-TC-DUAL
Zoro #
G022432626
UPC #
-
Country of Origin
Germany
Dimensions
Length
3.74 in
Layer Thickness
2 to 5000 µm
Min. Layer Thickness
0 µm
Min. Radius Of Curvature Concave
38 mm
NFe Layer Thickness
2 to 2000 µm
Width
3.74 in
Min. Radius Of Curvature Convex
6 mm
Details
Designation
TOP CHECK Dual
Measuring Functions
Quantity, MAX, MIN, Average value, Standard deviation
Min. Measuring Surface
Ø 8 mm
Includes
1 x TOP-CHECK Ferro Material Tester, 1 x Calibration base plate FE, 1 x Calibration base plate nFE, 2 x Calibration foils, 1 x Spare battery, 1 x Case, 1 x Calibration certificate
Units
µm, mils
Measurable Materials
Measurement of paint, varnish, plastic and galvanic coatings on steel (ISO 2178) and insulating coatings on non-ferrous metals (ISO 2360)
Accuracy
2 to 100 µm ± 1 µm, 100 to 1000 µm: ± 1%, 1000 to 2000 µm: ± 3%, 2000 to 5000 µm: ± 5%
Measuring Range
2 to 5000 µm
For Use With
Usually used in the quality assurance of coating processes
Description
The Thickness Gauge has a globally unique measuring probe that can be swiveled through 90 deg. , allowing you to always carry out precise coating thickness measurements. The Thickness Gauge with the compact, lightweight devices is barely larger than a measuring probe and is therefore ideal for on-site applications in hard-to-reach places. The handy metal housing is splash-proof to IP 64 for interference-free measurements in harsh environments. A coating thickness tester with flowing water protection is also available as an option. For a long service life with frequent measurements on rough surfaces, the measuring probe has a wear-resistant ruby probe pole. With a single button and the self-explanatory, multilingual menu navigation, the Thickness Gauge is very easy to operate. A Thickness Gauge is usually used in the quality assurance of coating processes. For example, to determine the paint thickness of a coating, when testing vehicles or steel structures or in fire protection (determining the coating thickness of steel doors). However, it is not only a Thickness Gauge, but can also be used to reliably measure rubber coatings, anodizing and galvanic coatings. The Thickness Gauge uses a combined probe to measure insulating layers of paint, varnish, plastic, rubber, ceramic and galvanic coatings (excluding nickel) using the magnetic induction measuring method. The device is used on iron and steel substrates. It is also suitable for measuring insulating coatings (paint, plastic, etc.) using the eddy current method on non-ferrous metals such as aluminum, brass, copper, bronze and non-magnetic stainless steels in accordance with ISO 2178 and ISO 2360. To further process your measurement data, you can connect your Thickness Gauge to mobile Android and iOS devices. Or you can communicate with a Windows PC. Wireless technology makes it possible. With the Lima Connect app, you can manage projects and allocate the measuring points on a photo. The measurement results can be statistically analysed and displayed graphically. The app for Android, iOS and Windows is free of charge.
