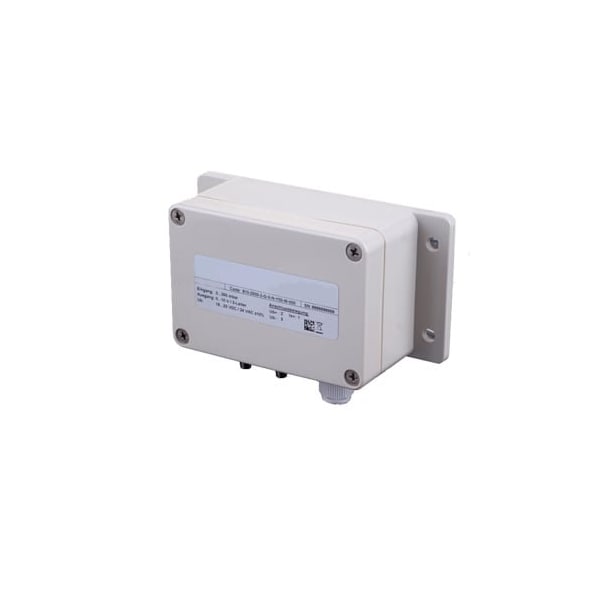

Differential pressure transmitter for process monitoring, selectable ranges 1.6 mbar-10 000 mbar
Mfr # PCE-DDMU 10
Zoro # G122432427
product price:Â $610.99
/ea
Free Shipping & Returns
Key Features
Measuring Rate
12.5 Hz
Resolution Table
1.0 mBar, 2.5 mBar, 6 mbar, 25 mbar, 60/160 mbar, 400/600 mbar
Response Time
<100 ms, Damping adjustable via potentiometer, 0-5000 ms
For Use With
Ideal for users working in the fine pressure range
Media
Gases,Air
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-DDMU 10
- Zoro #
- G122432427
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Width
- 2.7 in
- Length
- 5.98 in
Details
- Measuring Rate
- 12.5 Hz
- Resolution Table
- 1.0 mBar, 2.5 mBar, 6 mbar, 25 mbar, 60/160 mbar, 400/600 mbar
- Response Time
- <100 ms, Damping adjustable via potentiometer, 0-5000 ms
- For Use With
- Ideal for users working in the fine pressure range
- Media
- Gases,Air
- Measuring Ranges
- Adjustable by the user
- Temperature Error
- ≤ ± 0.5% FSO / 10 K (typ.) For PN <6 mbar ≤ ± 0.3% FSO / 10 K (typ.) For PN ≥ 6 mbar
- Application
- Ideal for users working in the fine pressure range
- Switching Output
- For 3-wire version:, 2 x 230V / 2A change-over relays For 2-, Wire variant: 2 x PNP Open collector output
- Range
- ± 1.6 mBar, ± 4 mBar, ± 10 mBar, ± 40 mBar, ± 250 mBar, ± 1000 mBar
- Long-Term Stability
- ≤ ± 1% FSO / year PN <6 mbar ≤ ± 0.5% FSO / year for PN ≥ 6 mbar
- Overpressure Limits
- 200 mbar, 200 mbar, 200 mbar, 345 mbar, 1000 mbar, 3000 mbar
- Max. Static Pressure
- 1.6 mBar, 4.0 mBar, 10 mBar, 40 mBar, 250 mBar, 10000 mBar
Description
The differential pressure transducer has user selectable pressure ranges, selectable analogue outputs, and an optional LCD display. These differential pressure transducers are supplied via the operating network. You can reconfigure the measuring devices on-site at any time with just a few simple steps. The long-term stability is better than 0.5% based on the full measuring range. The microprocessor-controlled electronics guarantee high accuracy (+/- 0.5% of the measuring range). In addition to being used in the process (to power a remote display or a regulator) as fixed or wall-mounted units, the differential pressure transducers can also be used as an on-site meter or even mobile. The optional LCD display allows on-site reading. With the help of the automatic zero setting, the measuring devices can be quickly reset on site. The analogue output can also be used in combination with the optional datalogger offered by us in the accessories. This allows you to record the differential pressure readings over a longer period of time, later transfer the stored data to a computer and analyze it there.
