Contact our U.S. based teamSpecifications
Product Information
MFR #
PCE-DFG N 20
Zoro #
G104852410
UPC #
4250348717849
Country of Origin
Germany
Details
Accuracy
± 0.1% of the measuring range
Includes
Chisel head adapter, Flat head adapter, Pointed head adapter, Hook adapter, Notched head adapter, Extension bar (90 mm / 3.5 in), PC software, USB data cable, Power supply, Carrying case, User manual
Measuring Units
N, kg, lb, Kpa
Resolution
0.01 N
Sampling rate
6 to 1600 Hz
Description

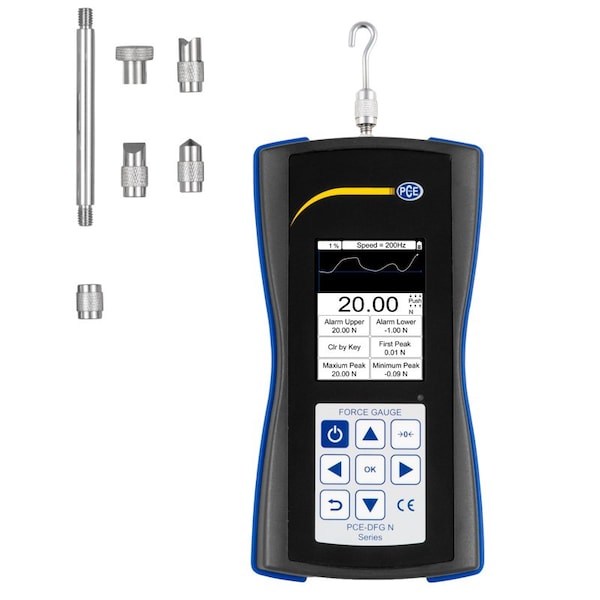

Digital Force Gage For tensile force measurement and pressure force measurement up to 20 N / Very high accuracy / Sampling rate 1600 Hz / 6 different measuring tips / USB interface / Software. Pull and pressure force measurement. Error limit 0.1% of the measuring range. PEAK function (MIN / MAX). Limit value function. Different measuring units. Automatic or manual storage. Graphical analysis. Automatic orientation display. Time date. Control and evaluation software. Automatic shutdown adjustable. Battery status indicator. Network operation possible.
