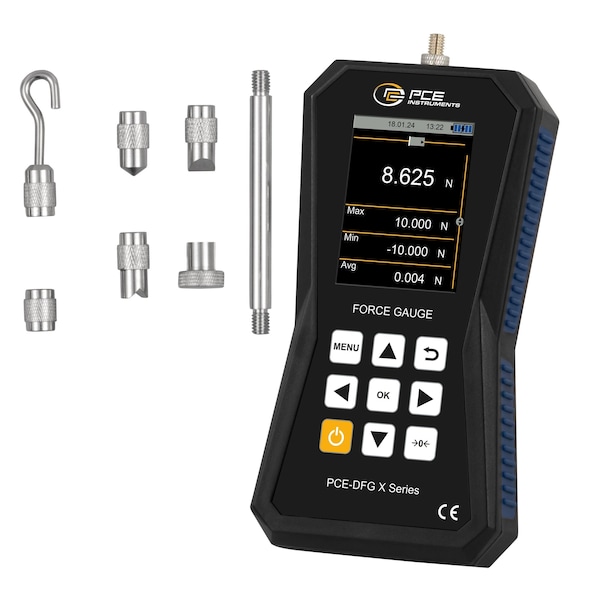

Force gauge for tension and compression, measures 10 N / 2.25 lbf with high resolution
Mfr # PCE-DFG 10 X
Zoro # G022432350
product price:Â $1,182.99
/ea
Free Shipping & Returns
Key Features
Application
To measure both tensile and compressive forces
Adjustable Measurement Rate
1 to 7200 Hz
Display Size
2.8 in
Accuracy
± 0.05 % F.S
Alarm
Optical, acoustic
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-DFG 10 X
- Zoro #
- G022432350
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Display Size
- 2.8 in
- Length
- 6.5 in
- Width
- 3.35 in
Details
- Application
- To measure both tensile and compressive forces
- Adjustable Measurement Rate
- 1 to 7200 Hz
- Accuracy
- ± 0.05 % F.S
- Alarm
- Optical, acoustic
- Memory Interval Up To
- 7200 Hz
- Includes
- 1 x Adapter set, 1 x Suitcase, 1 x USB-C cable, 1 x PC software, 1 x User manual
- Memory Interval Of
- 1 Hz
- Operating Time
- 13 Hrs
- Measuring Units
- N, kg, t, kN, Nm, Ncm, lb, ft, g
- Storage Capacity
- 32 GB
- Display
- LCD with illumination
- Automatic Switch-Off Adjustable
- 1 to 15 min
- Memory Medium
- Internal memory
- For Use With
- To measure both tensile and compressive forces
- Resolution
- 0.005 N
- Measuring Range
- 0 to 10 N
- Automatic Switch-Off Can Be Deactivated
- Yes
Description
Both tensile and compressive forces can be measured with high accuracy using this Tension Dynamometer / Tension Load Cell. Tensile and compressive forces are frequently measured in test laboratories. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The Tension Dynamometer / Tension Load Cell has an internal measuring cell and can measure forces up to 10 N / 2.2 lbf. Various eyelets or hooks with an M6 thread can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell using these threads. The internal memory of 32 GB offers space for 30 million measuring points. This can be used to create, save and export measurement logs. The Tension Dynamometer / Tension Load Cell has a USB-C interface that can be used to read the measurement data into the PC software. The Tension Dynamometer / Tension Load Cell is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value within the selected measurement range. Various force test stands are available for adapting the Tension Dynamometer / Tension Load Cell.
