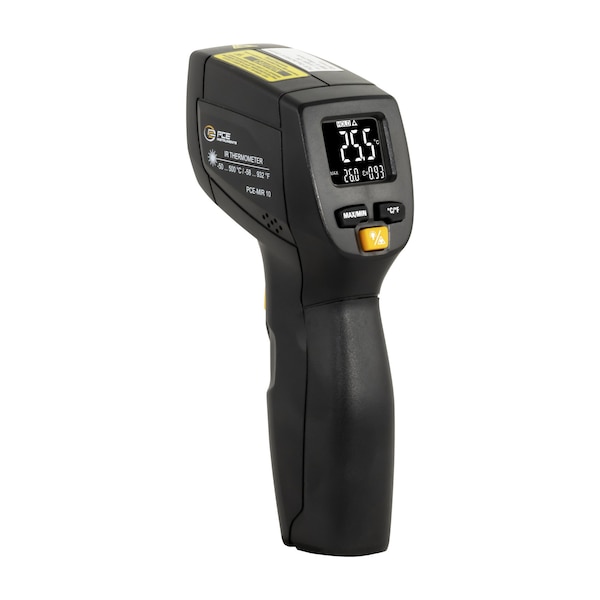

Infrared thermometer for surface temp, measures -58-932 deg F with 12:1 optics and laser pointer
Mfr # PCE-MIR 10
Zoro # G322432326
product price:Â $53.19
/eaKey Features
Application
For surface temperature testing of electric motors, combustion engines or heat sinks
Resolution
0.1°C / 0.1°F
Operating Conditions
00 to 50°C / 32 to 122°F, <90% r. h
Includes
1 x Carrying bag, 1 x Instruction manual
Accuracy
±3°C / 5.4°F at -50 to 20°C / -58 to 68°F, ±2 % ±2°C / 3.6°F at 20 to 500°C / 68 to 932°F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCE-MIR 10
- Zoro #
- G322432326
- UPC #
- -
- Country of Origin
- China
Dimensions
- Width
- 3.0 in
- Length
- 6.9 in
- Dimensions
- 175 x 75 x 35 mm / 6.9 x 3.0 x 1.4 in
Details
- Application
- For surface temperature testing of electric motors, combustion engines or heat sinks
- Resolution
- 0.1°C / 0.1°F
- Operating Conditions
- 00 to 50°C / 32 to 122°F, <90% r. h
- Includes
- 1 x Carrying bag, 1 x Instruction manual
- Accuracy
- ±3°C / 5.4°F at -50 to 20°C / -58 to 68°F, ±2 % ±2°C / 3.6°F at 20 to 500°C / 68 to 932°F
- Emission Value
- 0.95 fixed
- Laser
- Output power: <1 mW; wavelength: 630 to 670 mm; Laser class: 2
- For Use With
- For surface temperature testing of electric motors, combustion engines or heat sinks
- Features
- Measuring range 50 to 500°C/ 58 to 932°F, automatic switchoff, immediate operating range, Measuring ratio 12:1, Max / Min function
- Power Supply
- 9V block battery
- Measuring Range
- -50 to 500°C / -58 to 932°F
- Spot Ratio
- 12:1
- Measuring Rate
- 2 Hz
- Storage Conditions
- -10 to 60°C / 14 to 140°F, <80% r. h.
- Repeatability
- ±1°C / ±1.8°F
- Spectral Range
- 8-14 µm
Description
The digital thermometer has a measuring range of -5 ... +5 deg C and covers a wide temperature range. With an accuracy of +/-2 % +/-2 deg C at 2 ... 5 deg C, the digital thermometer is a very precise measuring device. For better orientation of the measuring spot, a laser pointer is built into the digital thermometer. This laser on the digital thermometer has an output power of <1 mW. The emission value of the digital thermometer is fixed at .95. The digital thermometer is used, for example, for surface temperature testing of electric motors, combustion engines or heat sinks. Thanks to its compact design, the digital thermometer is handy and can be easily stowed away. To switch on the digital thermometer, press the measuring button. The measurement is then immediately taken by the digital thermometer. When the button is released, the last value remains on the display of the digital thermometer until a new measurement is taken. Optionally, the digital thermometer can be equipped with an ISO calibration certificate.
