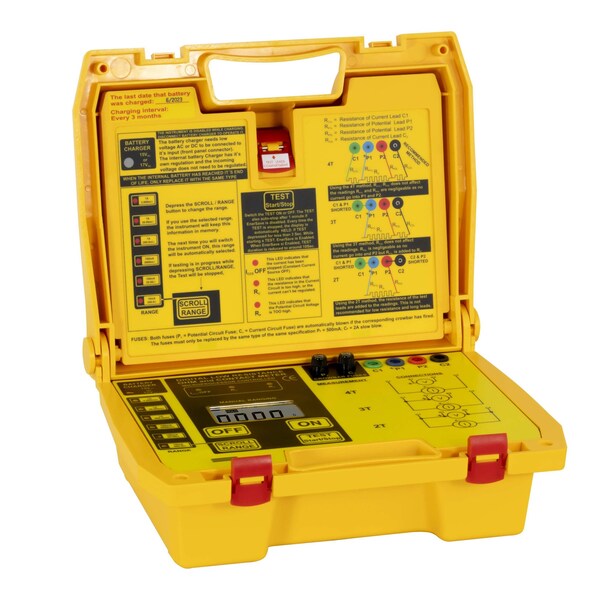

Micro-ohmmeter for precision resistance testing, measures down to 1 microhm with high-current output
Mfr # PCE-MO 3001
Zoro # G422432356
product price:Â $2,496.99
/ea
Free Shipping & Returns
Key Features
Max. Output Voltage
0V rms
Length
13.0 in
Includes
1 x Test cable set, 1 x Power cable, 1 x User manual, 1 x Carrier bag
Width
10.2 in
Power Supply
Internal accumulator
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
PCE-MO 3001
Zoro #
G422432356
UPC #
-
Country of Origin
Taiwan, Province of China
Dimensions
Length
13.0 in
Width
10.2 in
Dimensions
330 x 260 x 160 mm / 13.0 x 10.2 x 6.3 in
Details
Max. Output Voltage
0V rms
Includes
1 x Test cable set, 1 x Power cable, 1 x User manual, 1 x Carrier bag
Power Supply
Internal accumulator
Test Current
10 mA (200 Ω area), 100 mA (20 Ω, 2 Ω areas), 1 A (200 mΩ, 20 mΩ, 2 mΩ areas)
Features
Resolution of up to 1µΩ, Internal temperature surveillance, Large LCD, USBinterface, Robust plastic case, Internal accumulator
Application
Used in those fields where resistance need to be estimated
For Use With
Used in those fields where resistance need to be estimated
Test Current Accuracy
10 mA ±1.5 %, 100 mA ±2.0 %, 1 A ± 3.0 %
Description
The ohm meter is made to measure smallest electrical resistances. It uses four test cables that can be connected to the ohm meter. The ohm meter uses two test cables and a constant current source to allow stable current to flow within the measured device. The other two test cables measure the voltage drop. Due to the fact that this ohm meter is able to measure six different measurement ranges with three different measured currents, the user has the chance to observe a wide range of current. The ohm meter is mostly used in those fields where resistance need to be estimated. Because of the measured current which can be set up to 1 A, also the smallest resistances can be measured. The wide LCD and large buttons of this ohm meter allow a comfortable use.
