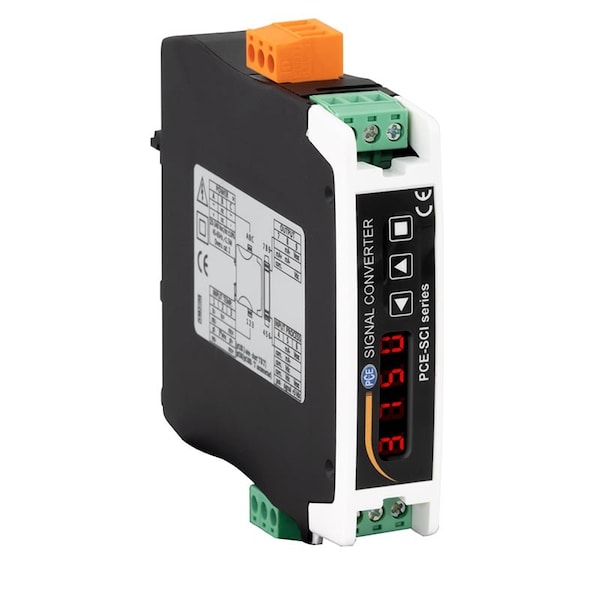

Multisignal DIN-rail converter, supports mA/V, RTD, NTC, and thermocouples, 4-20 mA/0-10 V output
Mfr # PCE-SCI-U
Zoro # G022432299
product price:Â $251.99
/ea
Free Shipping & Returns
Key Features
Width
0.9 in
Input Measuring Range Accuracy Overload Process Current
4 to 20 mA <0.3% of measuring range max. 25 mA
For Use With
Converts an analog input signal into a corresponding analog output signal
Input Thermoelement Type S
0 to 900°C / 32 to 1652°F; <2% of measuring range; 0 to 1200°C / 32 to 2192°F; 0 to 1500°C / 32 to 2732°F; 0 to 1750°C / 32 to 3182°F
Input Thermoelement Type R
0 to 900°C / 32 to 1652°F; <2% of measuring range; 0 to 1200°C / 32 to 2192°F; 0 to 1500°C / 32 to 2732°F; 0 to 1750°C / 32 to 3182°F
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
PCE-SCI-U
Zoro #
G022432299
UPC #
-
Country of Origin
Spain
Dimensions
Width
0.9 in
Length
4.3 in
Details
Input Measuring Range Accuracy Overload Process Current
4 to 20 mA <0.3% of measuring range max. 25 mA
For Use With
Converts an analog input signal into a corresponding analog output signal
Input Thermoelement Type S
0 to 900°C / 32 to 1652°F; <2% of measuring range; 0 to 1200°C / 32 to 2192°F; 0 to 1500°C / 32 to 2732°F; 0 to 1750°C / 32 to 3182°F
Input Thermoelement Type R
0 to 900°C / 32 to 1652°F; <2% of measuring range; 0 to 1200°C / 32 to 2192°F; 0 to 1500°C / 32 to 2732°F; 0 to 1750°C / 32 to 3182°F
Includes
1 x User Manual
Input Thermoelement Type T
0 to 100°C / 32 to 212°F; <1% of measuring range; 0 to 200°C / 32 to 392°F; 0 to 300°C / 32 to 572°F; 0 to 400°C / 32 to 752°F
Input Resistance
0 to 2.5 kΩ; <1% of measuring range; 0 to 5 kΩ; 0 to 10 kΩ; 0 to 25 kΩ; 0 to 50 kΩ; 0 to 100 kΩ
Input Measuring Range Accuracy Overload Process Voltage
0 to 10 V <0.3% of measuring range max. 25 V DC
Application
Converts an analog input signal into a corresponding analog output signal
Input Potentiometer
0 to 100% 0 to 500 Ω; <1% of measuring range; 0 to 20 kΩ
Description
The transmitter converts an analog input signal into a corresponding analog output signal. The input and output signals from the transmitter are completely galvanically isolated. The input and output range is set via two buttons. The type of adjustment is displayed on an internal LED display. Over 100 different combinations of input and output, as well as the free scaling within the set ranges, make this transmitter a universally applicable device and save an expensive and laborious storage of different types. Since the input and output ranges can also be set identically, the transmitter can also be used for galvanic decoupling. The transmitter is simply snapped onto a C or DIN rail. The signal converter can be operated with a voltage between 18 ... 265V AC / DC.
