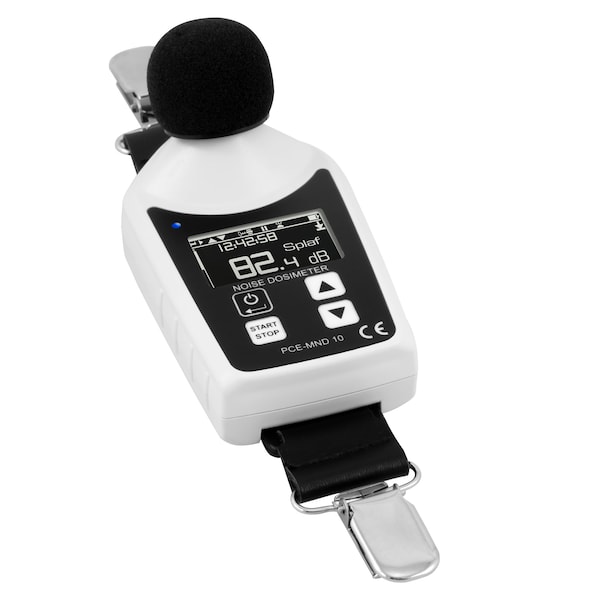

Noise dosimeter for occupational monitoring, measures 70-130 dB with data logging and USB export
Mfr # PCE-MND 10
Zoro # G222432372
product price:Â $1,724.99
/ea
Free Shipping & Returns
Key Features
Measuring Range
70-140 dB (A, C), 90-140 dB (Z)
Threshold Adjustment Range
70 to 90 dB
For Use With
For measuring noise exposure in workplaces and complies with the IEC 61252:2002 standard
Length
3.3 in
Application
For measuring noise exposure in workplaces and complies with the IEC 61252:2002 standard
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
PCE-MND 10
Zoro #
G222432372
UPC #
-
Country of Origin
Taiwan, Province of China
Dimensions
Length
3.3 in
Width
1.9 in
Details
Measuring Range
70-140 dB (A, C), 90-140 dB (Z)
Threshold Adjustment Range
70 to 90 dB
For Use With
For measuring noise exposure in workplaces and complies with the IEC 61252:2002 standard
Application
For measuring noise exposure in workplaces and complies with the IEC 61252:2002 standard
Adjustment Range Of The Criterion Level
70 to 90 dB
Threshold Resolution
1 dB
Frequency Range
31.5 Hz to 8 kHz
Frequency Weighting
A, C and Z
Warm-Up Time
10 seconds after power on
Resolution
0.1 dB
Measuring Range (Peak Value)
103 to 143 dB Peak
Includes
1 x USB cable, 1 x Charging station with power adapter, 1 x Supply bridge, 1 x Mounting bridge, 1 x Carrying case, 1 x Instruction manual
Adjustable Level Increase
3, 4, 5, 6 dB
Accuracy
Class 2
Memory
30 measurement runs with total 6101 measuring points
Time Weighting
Fast, slow, impulse
Timer
16 timers for an automatic data logging and 99 timers
Description
The sound dosimeter (badge type) was specially developed for measuring noise exposure in workplaces and complies with the IEC 61252:22 standard. With a measuring range of 7 ... 14 dB and a frequency weighting of A, B and Z, the noise dose meter is ideal for this. The time weighting on the noise dose meter can be selected between fast, slow and impulse. With the built-in 47 mAh battery, the sound dosimeter has a runtime of >15 hours. Up to three virtual noise dose meters can be set in a noise dose meter (badge type). This has the advantage that up to three measurement standards can measure simultaneously. The display of the sound dosimeter shows up to 14 measurement windows that can be set individually. The data transfer from the sound dosimeter (badge type) to a PC takes place directly via the charging station. The recorded measurement data can be read out and analyzed with the software for the noise dose meter. In addition, all settings for the noise dose meter can be made via the software. Another special feature of the sound dosimeter is that the charging stations can be coupled with each other. This has the advantage that several noise dose meters can be charged via one power pack. Up to four sound dosimeters can be charged simultaneously per power supply. For optimal support and positioning, the sound dosimeter (badge type) is attached to the work clothing of the respective employee with two crocodile clips. The distance between hearing and the noise dose meter should be between 1 and 15 cm (3.9 and 5.9").
