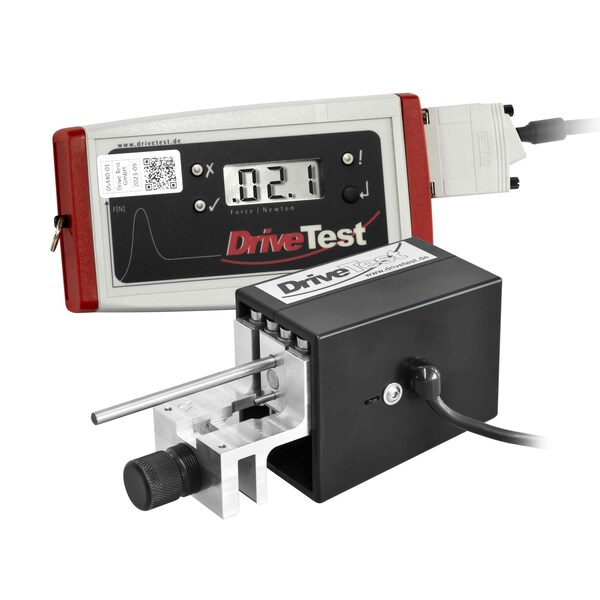

Pinch Force Meter
Mfr # FM205-WI-SE-65-260
Zoro # G416552909
product price: $2,811.99
/ea
Free Shipping & Returns
Key Features
Accuracy
±3 N (0 - 100 N) / ±3% (>100 N)
Includes
1 x Sensor 65 N/mm, 1 x Display device SEB2.2, 1 x PinchPilot software, 1 x ISO calibration certificate
Range
0 - 260 N
Cable Length
1.5 m
Spring Stiffness
65 N/mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
FM205-WI-SE-65-260
Zoro #
G416552909
UPC #
-
Country of Origin
Germany
Dimensions
Cable Length
1.5 m
Width
6.8 in
Length
2.9 in
Dimensions
175 x 75 x 57 mm / 6.8 x 2.9 x 2.2 in
Gap Width
Fmax. 5 mm
Details
Accuracy
±3 N (0 - 100 N) / ±3% (>100 N)
Includes
1 x Sensor 65 N/mm, 1 x Display device SEB2.2, 1 x PinchPilot software, 1 x ISO calibration certificate
Range
0 - 260 N
Spring Stiffness
65 N/mm
For Use With
For measuring closing force for power-operated windows in the automotive sector.
Application
For measuring closing force for power-operated windows in the automotive sector.
Area
5 x 80 mm / 0.2 x 3.1 in
Force Introduction
One-Sided
Force Sensor
DMS Bridge
Description
The closing force measuring device is an electronic device for power-operated windows in the automotive sector. Typical applications include testing and production in the automotive industry. For this purpose, we have developed a device that is characterized by its ease of use for repeatable measurements. Due to the requirements of various common standards, we offer the device with different spring stiffnesses. It is also increasingly being used by technical inspection institutions. Its uncompromising design combines precision with practical robustness and ensures accurate measurement values even after years of use in harsh environments.Fast and easy execution is crucial for measurement setups in testing and production. For this purpose, we have developed software that drastically reduces the measurement process and the effort required for documentation. With just a few steps, the measurements can be transferred to a PC, evaluated, exported, and documented. We provide suitable interfaces e.g., Microsoft DLL or National Instruments LabVIEW for integration into an automated test sequence.
