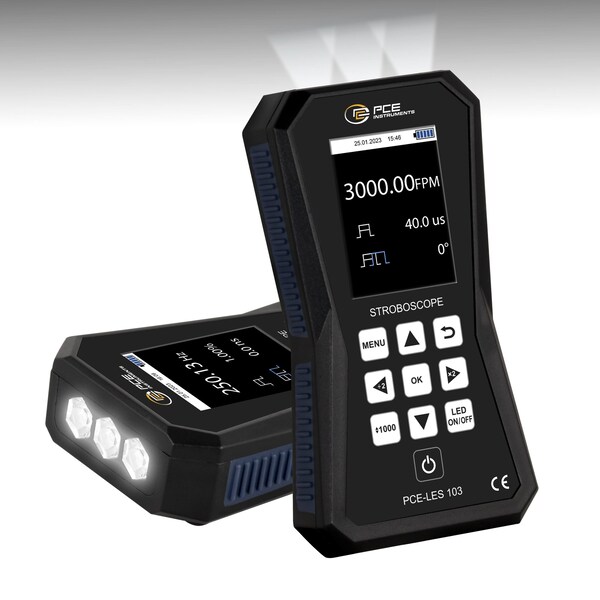

Stroboscope for motion analysis, flash frequency 60-300,000 FPM / 1-5,000 Hz with phase shift

The motion analysis of rotating machines is quick and easy with our handheld tachometer. The handheld tachometer is equipped with 3 high-power LEDs, collectively producing a light intensity of 11,73 Lux at 2 cm / 1 Hz. With the handheld tachometer, you can precisely adjust the flash frequency in both FPM and Hz. Additionally, it is compact, portable, and operates independently thanks to the built-in battery. The intuitive operation of the handheld tachometer is facilitated by the 1 buttons, enabling quick adjustments. The phase shift allows for a variable shift of the observation point. The pulse width controls the duration and, consequently, the intensity of the flash frequency. In the settings menu, you can choose the display brightness and set the display to turn off after a period of inactivity, extending the battery life. The handheld tachometer comes with a USB-C charging cable in a service pouch. The handheld tachometer is an indispensable tool for monitoring and inspecting manufacturing facilities, such as in the printing and textile industries. It is also useful for general maintenance and inspection tasks across all industrial sectors. The handheld tachometer also enables non-contact speed and vibration measurement: If the handheld tachometer flash frequency matches the motion frequency, the observed object appears stationary.
